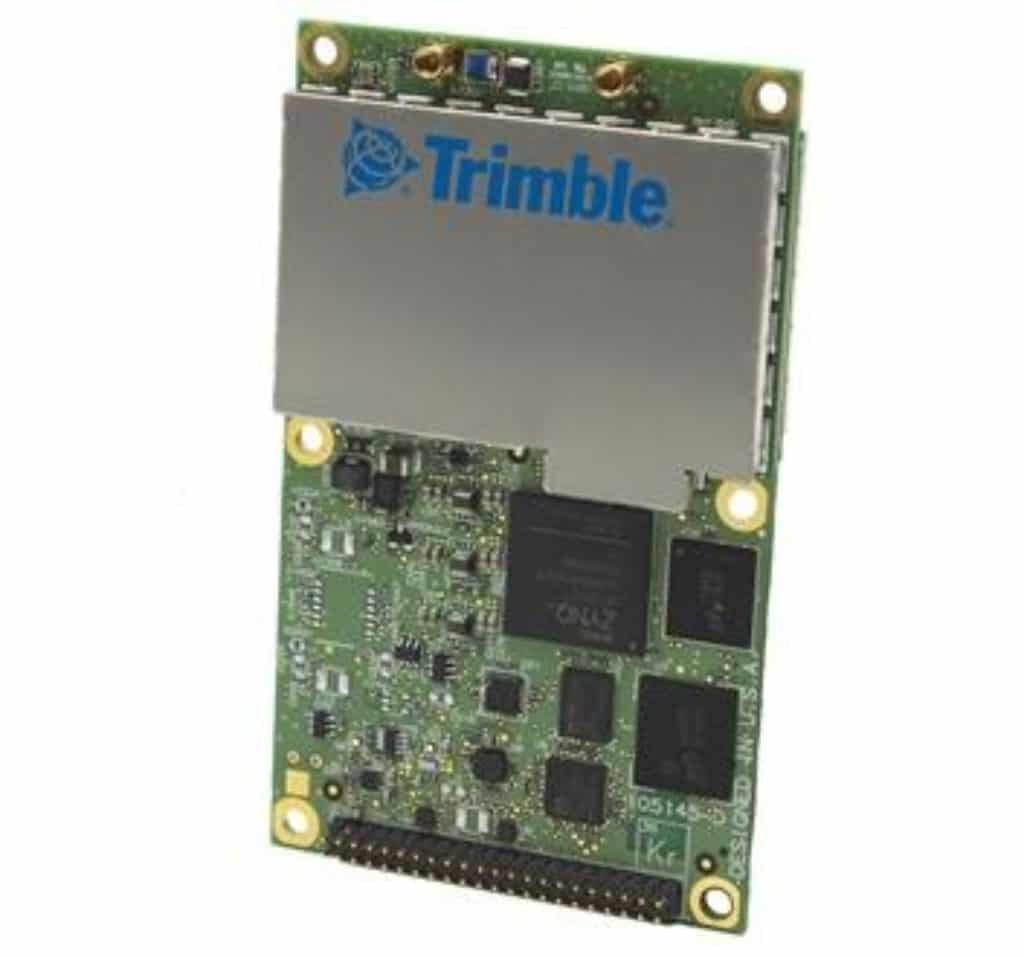

The Trimble BD992 Dual Antenna Receiver
Trimble introduced its family of BD GNSS boards for high-precision guidance and control applications. The BD boards offer simple connectivity and configuration so system integrators can easily add GNSS positioning and orientation for specialized and custom hardware solutions.
The BD992 is a dual-antenna receiver that delivers centimeter accurate positions and precise heading. Heading derived from dual-antenna GNSS measurements helps overcome issues such as difficulty determining where the antenna is positioned relative to the vehicle and object of interest. With the BD992, you are buying a robust navigation solution, not just a GNSS receiver.Â
The Trimble BD992 supports triple frequency for the GPS, GLONASS, BeiDou and Galileo constellations. As the number of satellites in the constellations grows the BD992 is ready to take advantage of the additional signals. This delivers the quickest and most reliable RTK initializations for centimeter positioning.Â
KEY FEATURES
- Trimble Maxwell 7 Technology
- Dual-antenna inputs for precise heading calculation
- 336 Channels per antenna for multi-constellation GNSS support
- OmniSTAR/RTX Support
- Compact design for mobile applications
- Flexible RS232, USB and Ethernet interfacing
- Centimeter level position accuracy
- Advanced RF Spectrum Monitoring
Models
GPS (HDG Disabled)
100992-01: Trimble BD992, All options disabled, requires upgrade to output positions
 100992-02: Trimble BD992, GPS,MSS, L1, Autonomous/SBAS, 20Hz
 100992-03: Trimble BD992, GPS,MSS, L1, DGPS Base/Rover, 20Hz
 100992-04: Trimble BD992, GPS,MSS, L1, RTK 1cm Base/Rover, 20Hz
100992-05: Trimble BD992, GPS,MSS, L1/L2/L5, Positions Limited to 30cm Rover,20Hz
 100992-06: Trimble BD992, GPS,MSS, L1/L2/L5, Positions Limited to 10cm Rover,20Hz
 100992-07: Trimble BD992, GPS,MSS, L1/L2/L5, RTK 1cm Rover,20Hz
100992-08: Trimble BD992, GPS,MSS, L1/L2/L5, RTK 1cm Base/Rover,20Hz
GPS GLONASS HDG
 100992-22: Trimble BD992, GPS,GLN,MSS,HDG L1, Autonomous/SBAS, 20Hz
100992-23: Trimble BD992, GPS,GLN,MSS,HDG L1, DGPS Base/Rover, 20Hz
 100992-24: Trimble BD992, GPS,GLN,MSS,HDG L1, RTK 1cm Base/Rover, 20Hz
 100992-25: Trimble BD992, GPS,GLN,MSS,HDG L1/L2/L5, Positions Limited to 30cm Rover,20Hz
 100992-26: Trimble BD992, GPS,GLN,MSS,HDG L1/L2/L5, Positions Limited to 10cm Rover,20Hz
 100992-27: Trimble BD992, GPS,GLN,MSS,HDG L1/L2/L5, RTK 1cm Rover,20Hz
 100992-28: Trimble BD992, GPS,GLN,MSS,HDG L1/L2/L5, RTK 1cm Base/Rover,20Hz
GPS GLONASS Galileo BeiDou HDG
 100992-62: Trimble BD992, GPS,GLN,GAL,BDS,MSS,HDG L1, Autonomous/SBAS, 20Hz
 100992-63: Trimble BD992, GPS,GLN,GAL,BDS,MSS,HDG L1, DGPS Base/Rover, 20Hz
100992-64: Trimble BD992, GPS,GLN,GAL,BDS,MSS,HDG L1, RTK 1cm Base/Rover, 20Hz
100992-65: Trimble BD992, GPS,GLN,GAL,BDS,MSS,HDG L1/L2/L5/E6, Positions Limited to 30cm Rover,20Hz
 100992-66: Trimble BD992, GPS,GLN,GAL,BDS,MSS,HDG L1/L2/L5/E6, Positions Limited to 10cm Rover,20Hz
 100992-67: Trimble BD992, GPS,GLN,GAL,BDS,MSS,HDG L1/L2/L5/E6, RTK 1cm Rover,20Hz
 100992-68: Trimble BD992, GPS,GLN,GAL,BDS,MSS,HDG L1/L2/L5/E6, RTK 1cm Base/Rover,20Hz
 100992-88: Trimble BD992, GPS,GLN,GAL,BDS,MSS,HDG L1/L2/L5/E6, RTK 1cm Base/Rover,20Hz CN
ProPoint(TM) Engine
Trimble® ProPoint™ Positioning Engine
Trimble® ProPoint high-precision positioning engine provides position and orientation data from the fusion of (1) GNSS signals, (2) globally accessible high-accuracy correction services, and (3) measurement data from a variety of sensors. It leverages the latest in GNSS signal infrastructure and Trimble’s high-precision receiver hardware to deliver improved positioning performance in challenging environments. It also contains dynamic models of specific application movements allowing it to filter out unexpected dynamic movements, such as with a bulldozer sliding sideways during operation, for improved accuracy.
Improved RTK Accuracy
- Improved RTK and Trimble RTX® performance in challenging environments where satellite line of sight can be impaired, such as under tree canopy, highway overpasses, and in dense urban areas.
- Sensor Fusion using tighter integration of GNSS and IMU (and new technologies in the future) to provide continuous position and orientation solution.
- Dynamic models tuned to specific applications such as automotive vs off-road vs marine for enhanced performance.
Increased Availability
- Independent tracking loop to enable tracking of L2C, L5 signals in the solution if L1 is jammed.
- Robust GNSS performance under harsh conditions such as canopy and urban environments.
- Reduced convergence times (<1 min in RTX-Fast regions) by utilizing multi-constellation signals from GPS, Galileo, GLONASS, BeiDou and QZSS
Better Integrity
- Advanced signal filtering and error modeling means better protection against jamming, spoofing and multipath interference.
- Improved satellite health reporting to better handle unforeseen constellation outages.
- Incorporation of Galileo NeQuick ionospheric model results in better resiliency.
Enhanced Constellation Support
- Implementation of all open BeiDou3 signals in RTK and RTX solution.
- Support for E6 data channel on Gen-II QZSS satellite signals.
- NAVIC support for correction formats.
