GPS Networking DCB GPS/GNSS DC Block

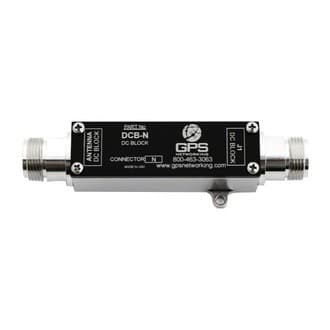

The DCB GPS DC Block (GNSS DC Block) from GPS Networking is a one input, one output device that is designed to block unwanted DC voltage anywhere in a system. The DCB features a miniaturized housing for use when small form factors are required. The frequency response covers the GPS L1, L2, L5, Galileo and GLONASS frequencies (entire L-band) with excellent flatness. In the normal configuration, the RF input and output will block DC from both the input and output.
Features
- Blocks DC voltage
- Small Form Factor
- 2.5 x 0.75 x 0.875 in. (not including connectors)
- Low Insertion Loss < 1.0dB typical
