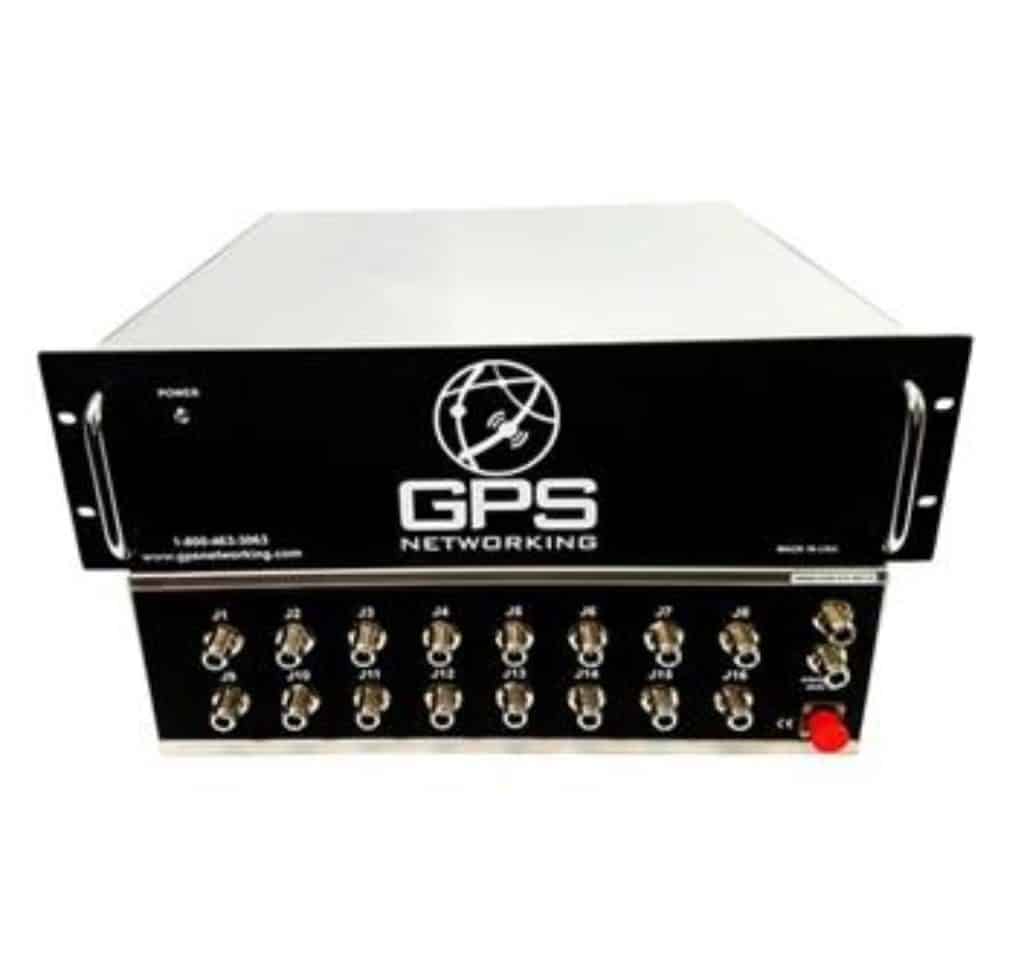

GPS Networking DRMALDCBS2X16 Rack Mount Splitter
The DRMALDCBS2X16 GPS Rack Mount Amplified Splitter is a TWO input, sixteen output device. The frequency response covers the GPS L1 & L2 bands with excellent gain flatness. In the normal configuration, the splitter is powered by a receiver connected on J1 that supplies power to the splitters amplifier and roof antenna. The outputs are DC loaded with 200 ohm resistors to simulate the antenna current draw. This product is ideal for timing and testing applications where the GPS carrier signal is required by up to 16 GPS devices simultaneously.
FEATURES
- Two Antenna Input
- Excellent Gain Flatness
- [J1-J16] <1.5dB
- Extremely Flat Group Delay
- Amplified 14dB gain typical
- DC Blocked Outputs Feature 200 ohm Loads
- LED Power Light
- -48VDC Power Option Available
- High Isolation Option
- >35dB of isolation between adjacent output ports
- Phase Matched Outputs
- Phase (J1 J16) < 1.0°
- Durable Rugged Standard 3U Chassis
