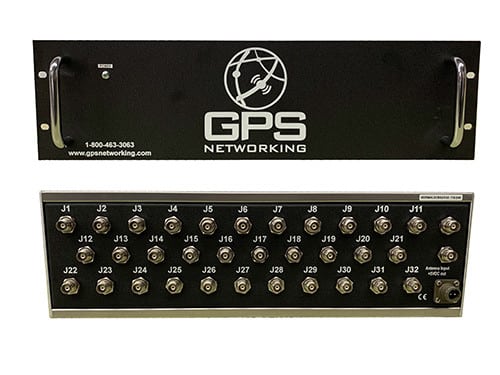

GPS Networking DRMALDCBS2X32 GPS Rack Mount Amplified Splitter
The DRMALDCBS2X32 GPS Rack Mount Amplified Splitter is a TWO input, thirty-two output device with –2dB max signal loss. The frequency response covers GPS L1 & L2 with excellent gain flatness. In the normal configuration, this splitter is powered by a transformer that supplies power to the splitter’s amplifier and roof antenna. The outputs are DC loaded with a 200 ohm resistor to simulate the antenna current draw. This product is ideally suited for timing and testing applications where the GPS carrier signal is required by up to 32 GPS devices simultaneously.
Features
- Two Antenna Input, Allows for dual antenna Input
- Extremely Flat Group Delay, Less that 1ns variation
- High Isolation Option, >35dB of isolation between adjacent output ports
- Phase Matched Outputs, Phase (J1 – J2) < 1.0o
