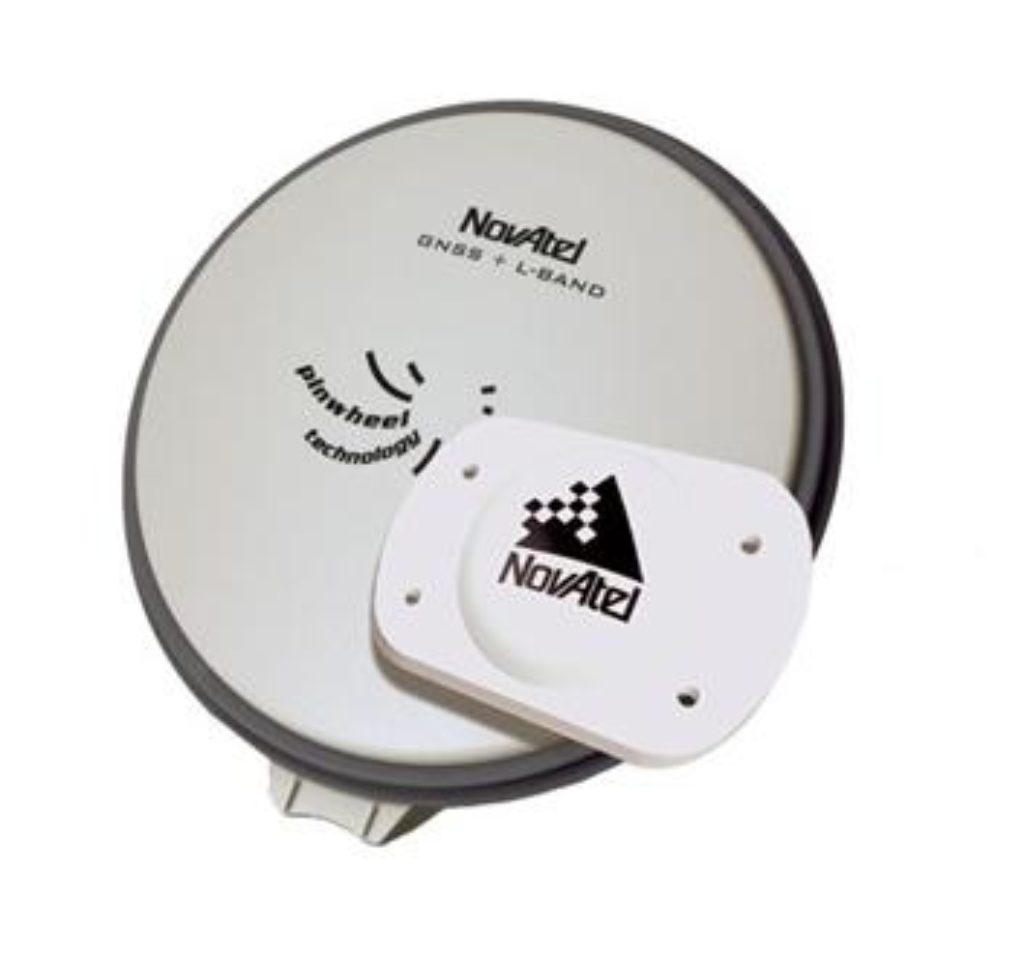

GPS-703-GGG Triple-Frequency GPS Pinwheel™ GNSS Antenna
This product has been discontinued by the manufacturer. It has been replaced by the GNSS-802. Please contact us for more information.
The NovAtel GPS-703-GGG receives L1, L2 and L5 GNSS frequencies and offers combined GPS GLONASS Galileo BeiDou signal reception. Customers can use the same antenna for GPS only, dual- or triple- constellation applications to increase flexibility and reduce equipment costs.
Stable Phase Center
The phase center of this antenna remains constant as the azimuth and elevation angle of the satellites change. Signal reception is not affected by the rotation of the antenna or satellite elevation, accordingly, placement and installation of the antenna can be completed with ease. With the phase center in the same location for the GNSS signals and with minimal phase center variation between antennas, this antenna is ideal for baselines of any length.
Features
- L1, L2 and L5
- GPS GLONASS Galileo BeiDou signal reception
- Excellent multipath rejection
- Highly stable phase center
- RoHS compliant
Benefits
- Receives all usable GNSS frequencies in a single antenna
- High quality measurements and stable phase center for precision applications
- Choke ring antenna functionality without the size and weight
- Reduces equipment costs and need for future redesign
- High quality measurements and stable phase center for precision applications
