GPS NetworkingLDCBS1X2 GPS Passive Antenna Splitter
Item #: LDCBS1X2

LDCBS1X2 GPS Passive Antenna Splitter 1X2

$285.00

The GPS Networking LDCBS1X2 GPS antenna splitter is a passive one input two output power divider designed specifically for the GPS L1, L2 & GLONASS carrier frequencies. DC blocked. Available with BNC, N-type, SMA, or TNC connectors.

View Full Description
SKU: LDCBS1X2 Categories: , , Manufacturer: GPS Networking

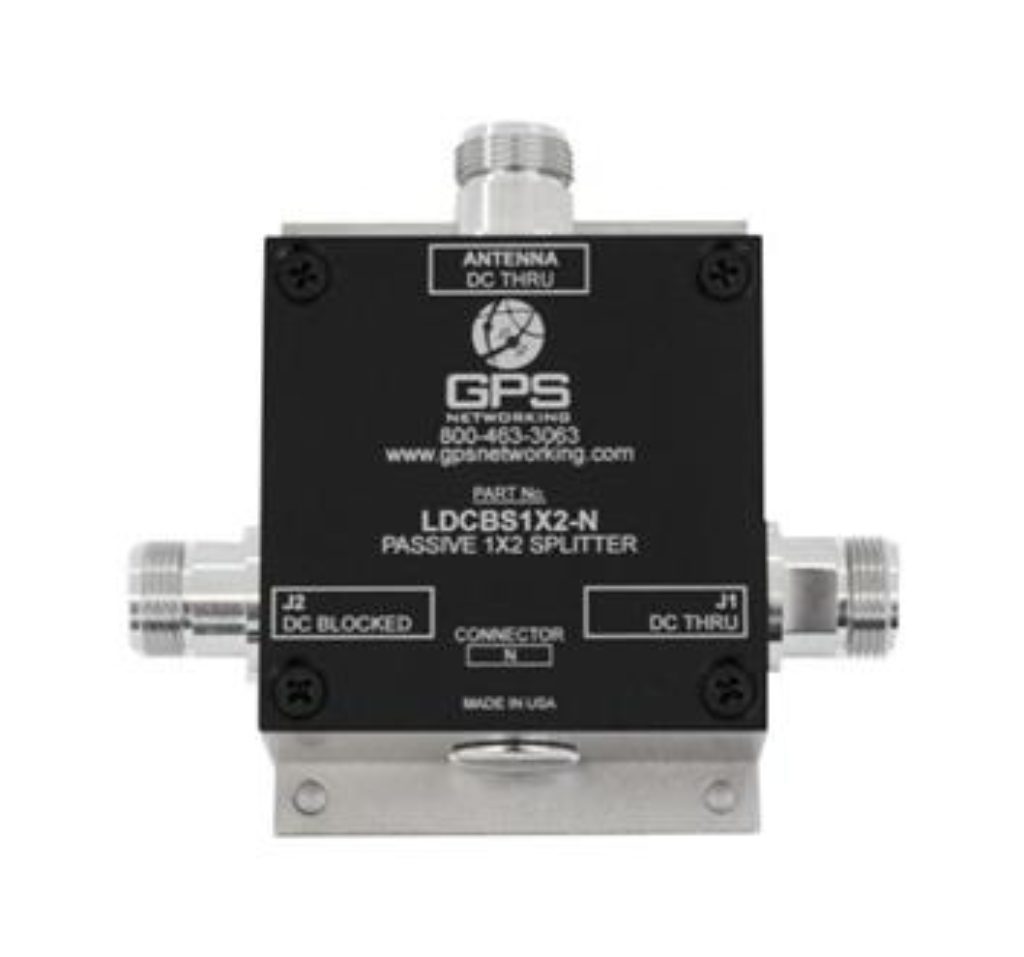

GPS Networking LDCBS1X2 GPS Passive Antenna Splitter

The LDCBS1X2 GPS Splitter is a one input, two output device based on the Wilkinson splitter design. The frequency response covers the GPS L1 & L2 bands with excellent gain flatness. In the normal configuration, one of the splitter RF outputs (J1) passes DC from the connected GPS receiver through the splitter to the antenna. The other RF output (J2) is DC loaded with a 200 ohm resistor to block the DC voltage and to simulate the antenna current draw to prevent false antenna fault detection.

NavtechGPS is your GPS networking source for RF networking products, including GPS splitters and amplifiers for distributed antenna systems (DAS).


GPS Networking LDCBS1X2 Antenna Splitter Data Sheet

If you chose networking, you must also choose power options. Please review this explanation of your power options.

For military power options, please download this PDF: Military Power Options (MC vs MC28)
