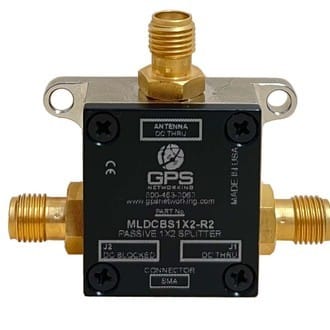

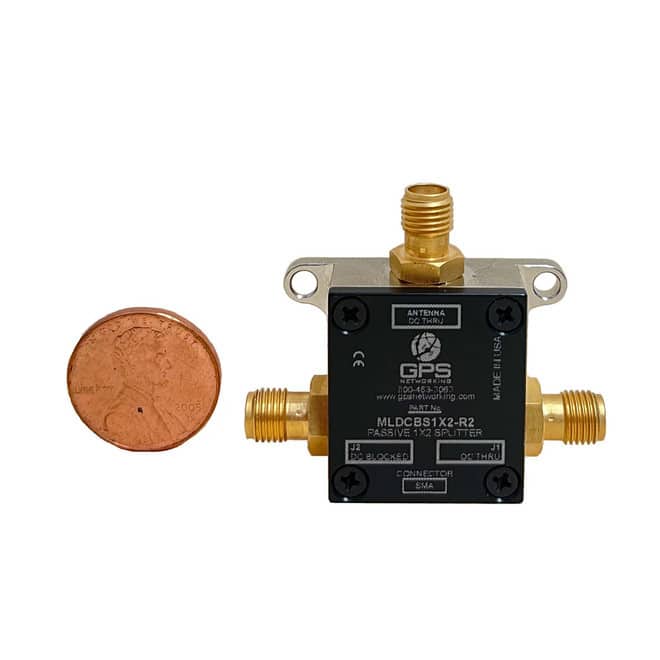

GPS Networking MLDCBS1X2-R2 Mini Passive GPS Splitter
The Mini Loaded DC Blocked Splitter 1X2 (MLDCBS1X2-R2) from GPS Networking is a passive one input, two output RF splitter that splits signals from 1.1 GHz to 1.7 GHz. It is designed to passively split signals within the L-band to provide multiple devices with the signal from a single antenna. In the standard configuration, the J1 port will pass DC voltage from a connected device and pass this power to the antenna or other devices upline from the splitter. The other port (J2) is DC blocked and loaded with a 200Ω resistor to simulate antenna current draw which prevents antenna alarm faults.
Features
- Precise amplitude balance
- Less than 1 dB variation between ports
- Flat group delay
- Less than 1ns variation between L1 and L2
- -3.5 dB loss is typical across all operating frequencies
