NovAtel Compact GNSS Antennas
This product has been discontinued by the manufacturer. Contact NavtechGPS for more information.

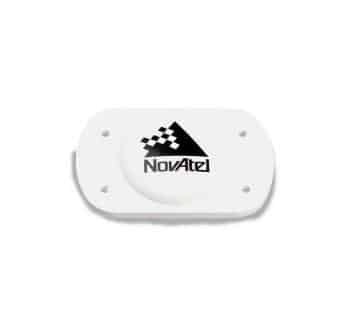

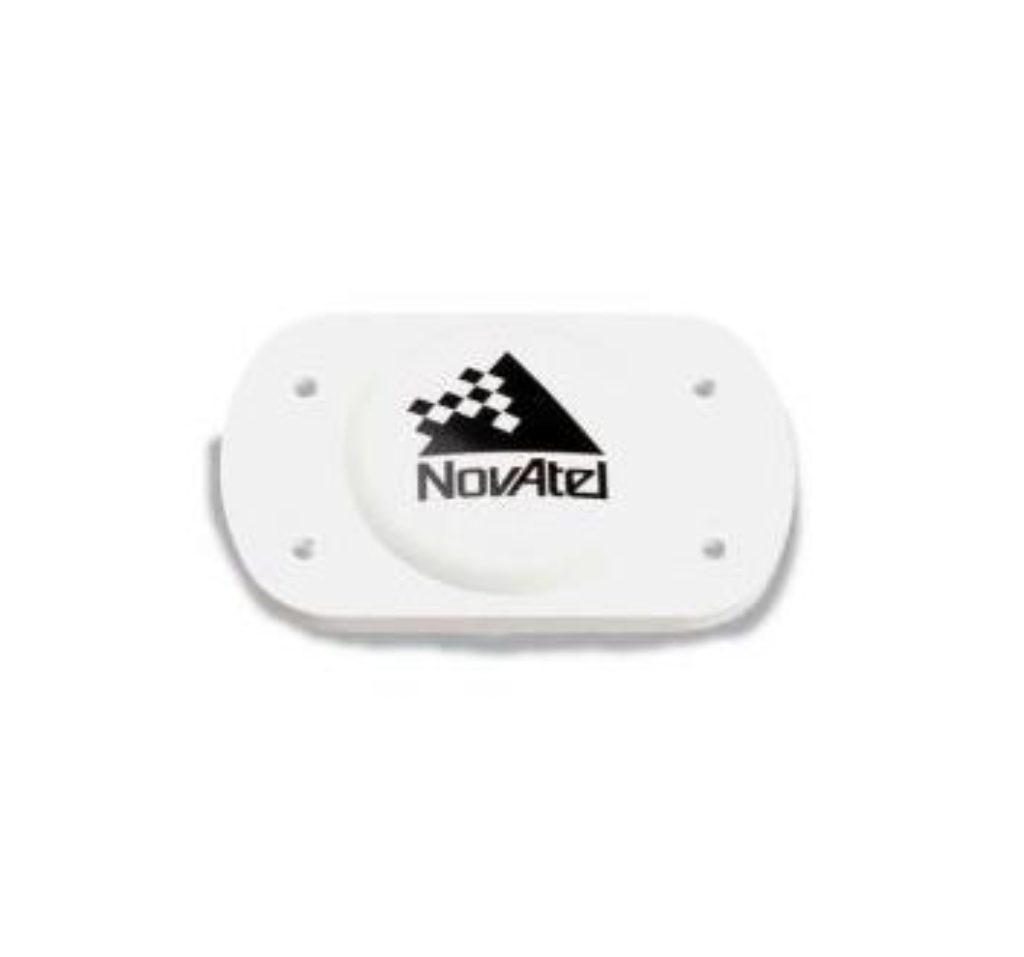

Whether you require a light, low profile GNSS antenna for aviation applications or a small but more robust, heavy duty antenna for agricultural or machine control applications, the NovAtel ANT line of compact GNSS antennas offers a variety of form factors and configurations suitable for space constrained environments. Also an excellent choice if you require a general purpose antenna.
Â
Â
Â
Triple-Frequency
2.6" CIRCULAR
ANT-2GNSSA-TWÂ Active L1/L2/L5/L-Band GPS and L1/L2 GLONASS Antenna, 2.6" circular, Fixed Mount Configuration, TNC-connector, white
Â
3.5" CIRCULAR
ANT-3GNSSA-TWÂ Active L1/L2/L5/L-Band GPS and L1/L2 GLONASS Antenna, 3.5" circular, Fixed Mount Configuration, TNC-connector, white
Â
ARINC 743
ANT-42GNSSA-TWÂ Active L1/L2/L5/L-Band GPS and L1/L2 GLONASS Antenna, Avionic Arinc 743 configuration, TNC-connector, white
Â
L1/L2 Dual-Frequency
3.5" CIRCULAR
ANT-35C2GA-TWÂ Active L1/L2 GPS Antenna, 3.5" circular, 33dB, TNC connector, white
Â
ARINC 743
ANT-A72GOLA-TWÂ Active L1/L2 GPS, L1/L2 GLONASS, and L-band Antenna, Arinc 743, 33dB, TNC-connector, white
ANT-A72GLA4-TW-NÂ Active L1/L2/L-Band GPS Antenna, Arinc 743, 40dB, TNC-connector, white
ANT-A72GLA-TW-NÂ Active L1/L2/L-Band GPS Antenna, Arinc 743, 33dB, TNC-connector, white
ANT-A72GA-TW-NÂ Active L1/L2 GPS Antenna, Arinc 743, 33dB, TNC-connector, white
Â
Single-Frequency
2.6" CIRCULAR
ANT-26C1GOA-196MNSBÂ Active L1/L-Band GPS/GLONASS Antenna, 2.6" circular, 33dB, magnet or screw mount, 5m cable with SMA-connector, black
ANT-26C1GA-TBW-NÂ Active L1 GPS Antenna, 2.6" circular, 33dB, TNC bulkhead connector, white
Â
3.5" CIRCULAR
ANT-35C1GA-TW-NÂ Active L1 GPS Antenna, 3.5" circular, 33dB, TNC-connector, white
ANT-35C1GLA-TRWÂ Active L1/L-Band GPS/GLONASS Antenna, 3.5" circular, 33dB, centre TNC-connector, white
Â
ARINC 743
ANT-A71GLA4-TWÂ Active L1/L-Band GPS/GLONASS Antenna, Arinc 743, 40dB, TNC connector, white
End of Life for Various ANT-series Antennas
NovAtel has been informed by the FAA that only a FAA TSO-C144 certification part number shall appear on FAA certified antennas. As a result, NovAtel must EOL all FAA certified antennas that have an Antcom and NovAtel part number appearing, and replace them with antennas that display only the FAA TSO-C144 part number. The replacement antennas will be identical to the original antenna product.
This EOL announcement, effective immediately, applies to the following antennas:
ANT-35C2GA-TWÂ
ANT-35C1GA-TW-NÂ
ANT-3GNSSA-TWÂ
ANT-35C1GLA-TRWÂ
ANT-A72GA-TW-NÂ
ANT-42GNSSA-TWÂ
ANT-A72GLA4-TW-NÂ
ANT-A72GLA-TW-NÂ
ANT-A71GLA4-TWÂ
ANT-A72GOLA-TW
Orders for these antennas will be automatically transitioned to the new part number. For special cases where this automatic transition may cause concern, please contact us for information.
NovAtel will continue to support and repair the affected products until: December 12, 2016
Affected part numbers and their associated replacement part numbers are listed below.
|
DISCONTINUED
Part Number
|
REPLACEMENT PART NUMBER |
| ANT-35C2GA-TW |
3GOXX16A4-XTR-1-1-Cert (white only - no NovAtel logo) |
| ANT-35C1GA-TW-N |
3GOXX16A4-XTR-1-2-Cert (white only - no NovAtel logo) |
| ANT-3GNSSA-TW |
3GOXX16A4-XTR-1-4-Cert (white only - no NovAtel logo) |
| ANT-35C1GLA-TRW |
Replacement still to be announced |
| ANT-A72GA-TW-N |
42G1215A-XT-1-Cert (white only - no NovAtel logo) |
| ANT-A72GLA4-TW-N |
42G1215A-XT-1-3-Cert (white only - no NovAtel logo) |
| ANT-A72GLA-TW-N |
42G1215A-XT-1-2-Cert (white only - no NovAtel logo) |
| ANT-A71GLA4-TW |
42GO16A4-XT-1-Cert (white only - no NovAtel logo) |
| ANT-A72GOLA-TW |
42GOXX16A4-XT-1-1-Cert (white only - no NovAtel logo) |
| ANT-42GNSSA-TW |
42GOXX16A4-XT-1-2-Cert (white only - no NovAtel logo) |
