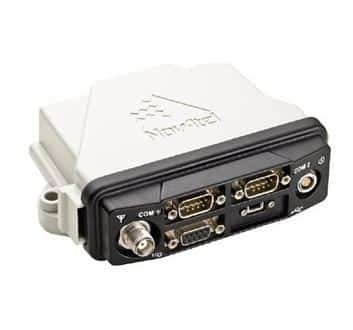

FlexPak-G2 with OEM Star Single Frequency GNSS Receiver
The manufacturer has issued an end of life (EOL) notice for this product. Please contact us about other product options.
One of four FlexPak-G2 variants from NovAtel, the FlexPak-G2 with OEMStar offers L1 GPS GLONASS positioning and measurements in combination with GPS data to provide increased satellite availability for positioning in challenging environments. As with all four FlexPak-G2 variants, the FlexPak-G2 with OEMStar is software upgradable in the field to provide the custom performance required for your application demands.
FEATURES
- L1 and SBAS tracking
- GPS and GLONASS only
- API, GLIDE, RAIM and 10 Hz firmware options
- Shock and dust resistant; waterproof to IPX7
- Easily upgradable to the FlexPak6 receiver
BENEFITS
- Low cost for handheld and timing applications
- Multi-constellation tracking yields higher solution availability and reliability
- Low power consumption for longer operation time
- Small, lightweight form factor ideal for size constrained applications
- Supported by industry’s highest level of customer service
Single-Frequency
FLEXG2-STAR-10HZ-D-G GPS plus GLONASS code positions and raw data, DGPS code corrections transmit, SBAS, 10Hz, GL1DE
FLEXG2-STAR-10HZ-G GPS plus GLONASS code positions and raw data, SBAS, 10Hz, GL1DE
FLEXG2-STAR-10HZ-DÂ GPS code positions and raw data, DGPS code corrections transmit, SBAS, 10Hz, GL1DE
FLEXG2-STAR-10HZÂ GPS code positions and raw data, SBAS, 10Hz, GL1DE
Â
FLEXG2-STAR-1HZ-D-GÂ GPS plus GLONASS code positions and raw data, DGPS code corrections transmit, SBAS, 1Hz, GL1DE
FLEXG2-STAR-1HZ-GÂ GPS plus GLONASS code positions and raw data, SBAS, 1Hz, GL1DE
FLEXG2-STAR-1HZ-DÂ GPS code positions and raw data, DGPS code corrections transmit, SBAS, 1Hz, GL1DE
FLEXG2-STAR-1HZÂ GPS code positions and raw data, SBAS, 1Hz, GL1DE
Â
FLEXG2-STAR-PVT-10HZ-G GPS plus GLONASS code positions only, SBAS, 10Hz
FLEXG2-STAR-PVT-10HZ GPS code positions only, SBAS, 10Hz
FLEXG2-STAR-PVT-1HZ-G GPS plus GLONASS code positions only, SBAS, 1Hz
FLEXG2-STAR-PVT-1HZ GPS code positions only, SBAS, 1Hz
Cable
01017663 Accessory Power Cable, 4-pin LEMO with automotive adapter for DL-4plus, DL-V3, ProPak-G2plus, Pro-Pak-V3, FlexPak6 and FlexPak-G2, RoHS compliant. For use at 12VDC only.
01017278 8.5cm RF cable with right-angle MCX male plug and straight TNC bulkhead jack connectors, RoHS compliant
01017658 Null-modern cable with 2 female DB-9 connectors for DL-V3, ProPak-V3, FlexPak6 and FlexPak-G2 enclosures, RoHS compliant
01017659 Straight serial cable (extension) with male and female DB-9 connectors for DL-4plus, DL-V3, EuroPak enclosures, ProPak-G2plus, Pro-Pak-V3, FlexPak6 and FlexPak-G2, RoHS compliant
01017660 I/O strobe port interface cable with DB-9 male connector and open wires for DL-4plus, DL-V3, EuroPak enclosures, ProPak-G2plus, Pro-Pak-V3, FlexPak6 and FlexPak-G2, RoHS compliant
40023114 AC adapter with auto receptacle for ProPak-G2plus, Pro-Pak-V3, FlexPak6, SMART antenna, and all EuroPaks, RoHS compliant
60323078 2 meter USB A to Mini-B cable, RoHS compliant
Â
01017278 8.5cm RF cable with right-angle MCX male plug and straight TNC bulkhead jack connectors, RoHS compliant
01017823 Straight serial cable with Deutsch and male DB-9 connectors (included with OEMV FlexPak enclosures), RoHS compliant
01017820 USB cable (Host side) to female 13-pin Deutsch circular connector (included with OEMV FlexPak enclosures), RoHS compliant
40023114 AC adapter with auto receptacle for ProPak-V3, FlexPak-G2, FlexPak6, SMART Antenna, and all EuroPaks, RoHS compliant
