Item #: OEM628

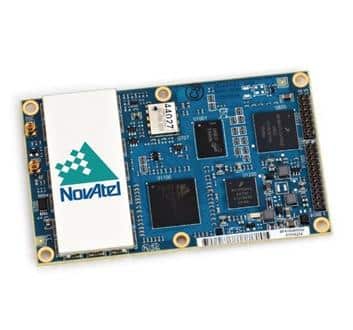

NovAtel OEM628 Series Receivers

Name: NovAtel OEM628 Series Receivers
SKU: OEM628
Availability: InStock

This product has been discontinued by the manufacturer. NovAtel has replaced it with the OEM 729. Please feel free to contact us with questions.

The OEM628 triple-frequency receiver tracks all current and upcoming Global Navigation Satellite System (GNSS) constellations and satellite signals including GPS, GLONASS, Galileo, BeiDou and QZSS. The OEM628 is software upgradable to track future signals as they become available.

SKU: OEM628 Categories: GPS and GNSS Receivers, OEM Manufacturer: NovAtel

OEM628 Triple-Frequency Plus L-Band Receiver

This product has been discontinued by the manufacturer. NovAtel has replaced it with the OEM 729. Please feel free to contact us with questions.

Designed with the Future in Mind

The OEM628 is designed with NovAtel’s new 120 channel ASIC, which tracks all current and upcoming GNSS constellations and satellite signals including GPS, GLONASS, Galileo and Compass. Configurable channels optimize satellite availability in any condition, no matter how challenging. Already tracking GPS L5 and Galileo GIOVE-A/B test satellites, the OEM6 is software upgradable to track future signals as they become available. Maximizing satellite availability and optimizing GNSS signal usage now, and in the future, ensures consistent, high performance GNSS positioning.

Easy System Integration

The OEM628 is designed and built with a focus on quality and ease of integration. It maintains NovAtel’s industry-setting V2 form factor ensuring a successful drop-in replacement and backwards compatibility for existing customers. A development kit and user-friendly configuration software is available to assist new customers with rapid integration and faster time to market. NovAtel’s established, comprehensive set of software commands facilitates system integration. Ethernet and NTRIP 2.0 Client and Server connectivity is offered in addition to our traditional communications interfaces.

Flexible Configurations for your Application

Proven and innovative new NovAtel technology combine to achieve the best in GNSS positioning. NovAtels industry-leading Pulse Aperture Correlator multipath mitigation technology is standard and ensures the highest quality measurements and positioning. Innovative new technology provides excellent resistance to interference for consistent, accurate and reliable positioning. Configurable options ensure that your positioning and accuracy needs are being met at all times.

Features

Sub-meter to centimeter-level positioning
GLIDE smoothing algorithm
AdVance RTK (RT-2®)
ALIGN heading
RAIM firmware options
Low power consumption
Flexible communication interfaces
Software configurable performance
High position accuracy and availability
SPAN INS functionality

Benefits

Innovative OEM6® technology
Supports current and future GNSS signals
Application based configurations
Designed for rapid integration

NovAtel OEM628 Receiver Data Sheet

NovAtel OEM 628 Receiver Brochure

OEM628 Receiver Cards

TRIPLE FREQUENCY

OEM628-D5S-B0G-TTN------ GPS+GLONASS, L1/L2/L5, SBAS, DGPS, NovAtel CORRECT RT-2 Base, GL1DE, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM628-G5S-B0G-TTN------ GPS, L1/L2/L5, SBAS, DGPS, NovAtel CORRECT RT-2 Base, GL1DE, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM628-T5S-B0G-TTN------ GPS+GLONASS+GALILEO, L1/L2/L5/E1/E5a, SBAS, DGPS, NovAtel CORRECT RT-2 Base, GL1DE, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM628-TAS-B0G-TTN------ GPS+GLONASS+GALILEO, L1/L2/L5/E1/E5a/E5b/AltBOC, SBAS, DGPS, NovAtel CORRECT RT-2 Base, GL1DE, 20 Hz Measurements, 20 Hz Positions, NTRIP

DUAL FREQUENCY

OEM628-CDS-R0G-TT0------ GPS+BEIDOU+GLONASS, L1/L2/B1/B2, SBAS, DGPS, NovAtel CORRECT RT-2 Base/Rover, GL1DE, 20 Hz Measurements, 20 Hz Positions

OEM628-CDS-R0G-TTN------ GPS+BEIDOU+GLONASS, L1/L2/B1/B2, SBAS, DGPS, NovAtel CORRECT RT-2 Base/Rover, GL1DE, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM628-CDS-Y0G-0TN------GPS+BEIDOU+GLONASS, L1/L2/B1/B2, SBAS, DGPS, ALIGN Relative Positioning, GL1DE, 20 Hz Positions, NTRIP

OEM628-CDS-Y0G-TTN------GPS+BEIDOU+GLONASS, L1/L2/B1/B2, SBAS, DGPS, ALIGN Relative Positioning, GL1DE, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM628-D2L-BPG-TTN------GPS+GLONASS, L1/L2, L-Band, SBAS,DGPS, NovAtel CORRECT RT-2 Base, NovAtel CORRECT PPP, GL1DE, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM628-D2L-BPR-TTN------GPS+GLONASS, L1/L2, L-Band, SBAS,DGPS, NovAtel CORRECT RT-2 Base, NovAtel CORRECT PPP, GL1DE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM628-D2L-RPG-TTN------GPS+GLONASS, L1/L2, L-Band, SBAS,DGPS, NovAtel CORRECT RT-2 Base/Rover, NovAtel CORRECT PPP, GL1DE, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM628-D2L-RPG-TTN-A------ GPS+GLONASS, L1/L2, L-Band, SBAS,DGPS, NovAtel CORRECT RT-2 Base/Rover, NovAtel CORRECT PPP, GL1DE, 20 Hz Measurements, 20 Hz Positions, NTRIP, API

OEM628-D2L-RPR-TTN------GPS+GLONASS, L1/L2, L-Band, SBAS,DGPS, NovAtel CORRECT RT-2 Base/Rover, NovAtel CORRECT PPP, GL1DE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM628-D2S-00G-0T0------ GPS+GLONASS, L1/L2, SBAS, DGPS, GL1DE, 20 Hz Positions

OEM628-D2S-B0G-TTN------GPS+GLONASS, L1/L2, SBAS, DGPS, NovAtel CORRECT RT-2 Base, GL1DE, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM628-D2S-B0R-TTN------GPS+GLONASS, L1/L2, SBAS, DGPS, NovAtel CORRECT RT-2 Base, GL1DE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM628-D2S-R0G-TTN------GPS+GLONASS, L1/L2, SBAS, DGPS, NovAtel CORRECT RT-2 Base/Rover, GL1DE, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM628-D2S-R0G-TTN-A------ GPS+GLONASS, L1/L2, SBAS, DGPS, NovAtel CORRECT RT-2 Base/Rover, GL1DE, 20 Hz Measurements, 20 Hz Positions, NTRIP, API

OEM628-D2S-R0R-TTN------GPS+GLONASS, L1/L2, SBAS, DGPS, NovAtel CORRECT RT-2 Base/Rover, GL1DE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM628-D2S-Y0G-0TN------GPS+GLONASS, L1/L2, SBAS, DGPS, ALIGN Relative Positioning, GL1DE, 20 Hz Positions, NTRIP

OEM628-D2S-Y0G-TTN------GPS+GLONASS, L1/L2, SBAS, DGPS, ALIGN Relative Positioning, GL1DE, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM628-D2S-Z00-00N------GPS+GLONASS, L1/L2, SBAS, DGPS, ALIGN Heading, NTRIP

OEM628-G2J-BPG-TTN------GPS, L1/L2, SBAS/L-Band/QZSS, DGPS, NovAtel CORRECT RT-2 Base, NovAtel CORRECT PPP, GL1DE, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM628-G2L-BPG-TTN------GPS, L1/L2, L-Band, SBAS,DGPS, NovAtel CORRECT RT-2 Base, NovAtel CORRECT PPP, GL1DE, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM628-G2L-BPR-TTN------GPS, L1/L2, L-Band, SBAS,DGPS, NovAtel CORRECT RT-2 Base, NovAtel CORRECT PPP, GL1DE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM628-G2L-RPG-110------ GPS, L1/L2, L-Band, SBAS,DGPS, NovAtel CORRECT RT-2 Base/Rover, NovAtel CORRECT PPP, GL1DE, 1 Hz Measurements, 1 Hz Positions

OEM628-G2L-RPG-TTN------GPS, L1/L2, L-Band, SBAS,DGPS, NovAtel CORRECT RT-2 Base/Rover, NovAtel CORRECT PPP, GL1DE, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM628-G2L-RPG-TTN-A------ GPS, L1/L2, L-Band, SBAS,DGPS, NovAtel CORRECT RT-2 Base/Rover, NovAtel CORRECT PPP, GL1DE, 20 Hz Measurements, 20 Hz Positions, NTRIP, API

OEM628-G2L-RPR-TTN------GPS, L1/L2, L-Band, SBAS,DGPS, NovAtel CORRECT RT-2 Base/Rover, NovAtel CORRECT PPP, GL1DE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM628-G2S-B0G-TTN------GPS, L1/L2, SBAS, DGPS, NovAtel CORRECT RT-2 Base, GL1DE, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM628-G2S-B0R-TTN------GPS, L1/L2, SBAS, DGPS, NovAtel CORRECT RT-2 Base, GL1DE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM628-G2S-R0G-TTN------GPS, L1/L2, SBAS, DGPS, NovAtel CORRECT RT-2 Base/Rover, GL1DE, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM628-G2S-R0G-TTN-A------ GPS, L1/L2, SBAS, DGPS, NovAtel CORRECT RT-2 Base/Rover, GL1DE, 20 Hz Measurements, 20 Hz Positions, NTRIP, API

OEM628-G2S-R0R-TTN------GPS, L1/L2, SBAS, DGPS, NovAtel CORRECT RT-2 Base/Rover, GL1DE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM628-G2S-Y0G-0TN------ GPS, L1/L2, SBAS, DGPS, ALIGN Relative Positioning, GL1DE, 20 Hz Positions, NTRIP

OEM628-G2S-Y0G-TTN------ GPS, L1/L2, SBAS, DGPS, ALIGN Relative Positioning, GL1DE, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM628-G2S-Z00-00N------ GPS, L1/L2, SBAS, DGPS, ALIGN Heading, NTRIP

OEM628-PDS-R0G-TTN------ GPS+BEIDOU, L1/L2/B1/B2, SBAS, DGPS, NovAtel CORRECT RT-2 Base/Rover, GL1DE, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM628-PDS-Y0G-0TN------ GPS+BEIDOU, L1/L2/B1/B2, SBAS, DGPS, ALIGN Relative Positioning, GL1DE, 20 Hz Positions, NTRIP

SINGLE FREQUENCY

OEM628-D1S-B0G-TTN------ GPS+GLONASS, L1, SBAS, DGPS, L1 Only Base, GL1DE, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM628-G1S-B0G-TTN------ GPS, L1, SBAS, DGPS, L1 Only Base, GL1DE, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM628-G1S-B0G-TTN-A------ GPS, L1, SBAS, DGPS, L1 Only Base, GL1DE, 20 Hz Measurements, 20 Hz Positions, NTRIP, API OEM628-T1S-B0G-TTN GPS+GLONASS+GALILEO, L1/E1, SBAS, DGPS, L1 Only

OEM628 Card

These models have been updated. See Models tab for current model numbers.

Triple-Frequency

OEM628-T5S-R0G-TTN GPS+GLONASS+Galileo L1/L2/L5/E1/E5a/E5b, 1 cm real-time kinematic positions, RT-2 corrections and raw data, code positions and DGPS, SBAS, 20 Hz, NTRIP Support

OEM628-T5S-B0G-TTN GPS+GLONASS+Galileo L1/L2/L5/E1/E5a/E5b, RT-2 corrections and raw data, code positions and DGPS, SBAS, 20 Hz

OEM628-D5S-B0G-TTN GPS L1/L2/L5, GLONASS L1/L2, RT-2 corrections and raw data, code positions and DGPS, SBAS, 20 Hz

OEM628-G5S-B0G-TTN GPS L1/L2/L5, RT-2 corrections and raw data, code positions and DGPS, SBAS, 20 Hz

L1/L5 Dual-Frequency

OEM628-DBS-B0G-TTN GPS plus GLONASS L1/L5, RT-20 corrections and raw data, code positions and DGPS, SBAS, 20 Hz

OEM628-WBS-B0G-TTN GPS+Galileo L1/L5/E1/E5a/E5b, RT-20 corrections and raw data, code positions and DGPS, SBAS, 20 Hz

OEM628-GBS-B0G-TTN GPS L1/L5, RT-20 corrections and raw data, code positions and DGPS, SBAS, 20 Hz

L1/L2 Dual-Frequency

OEM628-D2L-R0G-TTN-A GPS plus GLONASS 1 cm real-time kinematic positions, RT-2 corrections and raw data, code positions and DGPS, SBAS, 20 Hz, API

OEM628-D2L-R0G-TTN GPS plus GLONASS 1 cm real-time kinematic positions, RT-2 corrections and raw data, code positions and DGPS, SBAS, 20 Hz

OEM628-D2L-R0G-TTR GPS plus GLONASS 1 cm real-time kinematic positions, RT-2 corrections and raw data, code positions and DGPS, OmniSTAR HP/XP/VBS, SBAS, 20 Hz

OEM628-G2L-R0G-TTR GPS 1 cm real-time kinematic positions, RT-2 corrections and raw data, code positions and DGPS, OmniSTAR HP/XP/VBS, SBAS, 20 Hz

OEM628-D2L-B0G-TTR GPS plus GLONASS RT-2 corrections and raw data, code positions and DGPS, OmniSTAR HP/XP/VBS, SBAS, 20 Hz

OEM628-G2L-B0G-TTR GPS RT-2 corrections and raw data, code positions and DGPS, OmniSTAR HP/XP/VBS, SBAS, 20 Hz

OEM628-D2L-00G-0TR GPS L1/L2 plus GLONASS L1/L2 code positions and DGPS, OmniSTAR HP/XP/VBS/G2, SBAS, 20 Hz

OEM628-G2L-00G-0TR GPS code positions and DGPS, OmniSTAR HP/XP/VBS, SBAS, 20 Hz

OEM628-G2S-00G-0TN L1L2 SBAS positions, 20 Hz

OEM628-D2L-00G-05R GPS L1/L2 plus GLONASS L1/L2 code positions and DGPS, OmniSTAR HP/XP/VBS/G2, SBAS, 5 Hz

OEM628-G2L-00G-05R GPS code positions and DGPS, OmniSTAR HP/XP/VBS, SBAS, 5 Hz

OEM628-D2S-00G-0T0 GPS L1/L2 plus GLONASS L1/L2 code positions and DGPS, SBAS, 20 Hz

OEM628-D2S-Y0G-TTN GPS+GLONASS L1/L2, SBAS, ALIGN Relative Positioning , No Baseline Length Limitation, GL1DE, 20 Hz Measurement Output, 20 Hz Position Output, NTRIP

OEM628-G2S-Y0G-TTN GPS L1/L2, SBAS, ALIGN Relative Positioning , No Baseline Length Limitation, GL1DE, 20 Hz

Measurement Output, 20 Hz Position Output, NTRIP

OEM628-D2S-Y0G-0TN GPS+GLONASS L1/L2, SBAS, ALIGN Relative Positioning , No Baseline Length Limitation, GL1DE, No Measurement Output, 20 Hz Position Output, NTRIP

OEM628-G2S-Y0G-0TN GPS L1/L2, SBAS, ALIGN Relative Positioning , No Baseline Length Limitation, GL1DE, No

Measurement Output, 20 Hz Position Output, NTRIP

OEM628-D2S-Z00-00N GPS+GLONASS L1/L2, SBAS, ALIGN Heading, No Baseline Length Limitation, NTRIP, 20 Hz

OEM628-G2S-Z00-00N GPS L1/L2, SBAS, ALIGN Heading, No Baseline Length Limitation, NTRIP, 20 Hz

Single-Frequency

OEM628-D1S-R3G-TTN GPS plus GLONASS 2 cm real-time kinematic positions, 3 km baseline RTK corrections and raw data, code positions and DGPS, SBAS, 20 Hz, NTRIP Support

OEM628-T1S-B0G-TTN GPS+GLONASS+Galileo L1/E1, RT-20 corrections and raw data, code positions and DGPS, SBAS, 20 Hz

OEM628-D1L-F0G-TTR GPS plus GLONASS 20 cm real-time kinematic positions, RT-20 corrections and raw data, code positions and DGPS, OmniSTAR VBS, SBAS, 20 Hz

OEM628-G1L-F0G-TTR GPS 20 cm real-time kinematic positions, RT-20 corrections and raw data, code positions and DGPS, OmniSTAR VBS, SBAS, 20 Hz

OEM628-D1S-B0G-TTN GPS plus GLONASS RT-2L1TE corrections and raw data, code positions and DGPS, SBAS, 20 Hz

OEM628-G1S-B0G-TTN-A GPS RT-20 corrections and raw data, code positions and DGPS, SBAS, 20 Hz, API

OEM628-G1S-B0G-TTN GPS RT-20 corrections and raw data, code positions and DGPS, SBAS, 20 Hz

OEM628-G1L-00G-0TR GPS code positions and DGPS, OmniSTAR VBS, SBAS positions, 20 Hz

OEM628-G1S-00G-0TN GPS code positions, DGPS, SBAS, 20 Hz

OEM628-D1S-Y3G-TTN GPS+GLONASS L1, SBAS, ALIGN Relative Positioning , 3km Baseline Length Limitation, GL1DE, 20 Hz Measurement Output, 20 Hz Position Output, NTRIP

OEM628-D1S-Y3G-0TN GPS+GLONASS L1, SBAS, ALIGN Relative Positioning , 3km Baseline Length Limitation, GL1DE, No Measurement Output, 20 Hz Position Output, NTRIP

OEM628-D1S-Z30-00N GPS+GLONASS L1, SBAS, ALIGN Heading, 3km Baseline Length Limitation, NTRIP, 20 Hz

NovAtel OEM628 Triple-Frequency Plus L-Band GNSS Receiver EOL NOTICE
