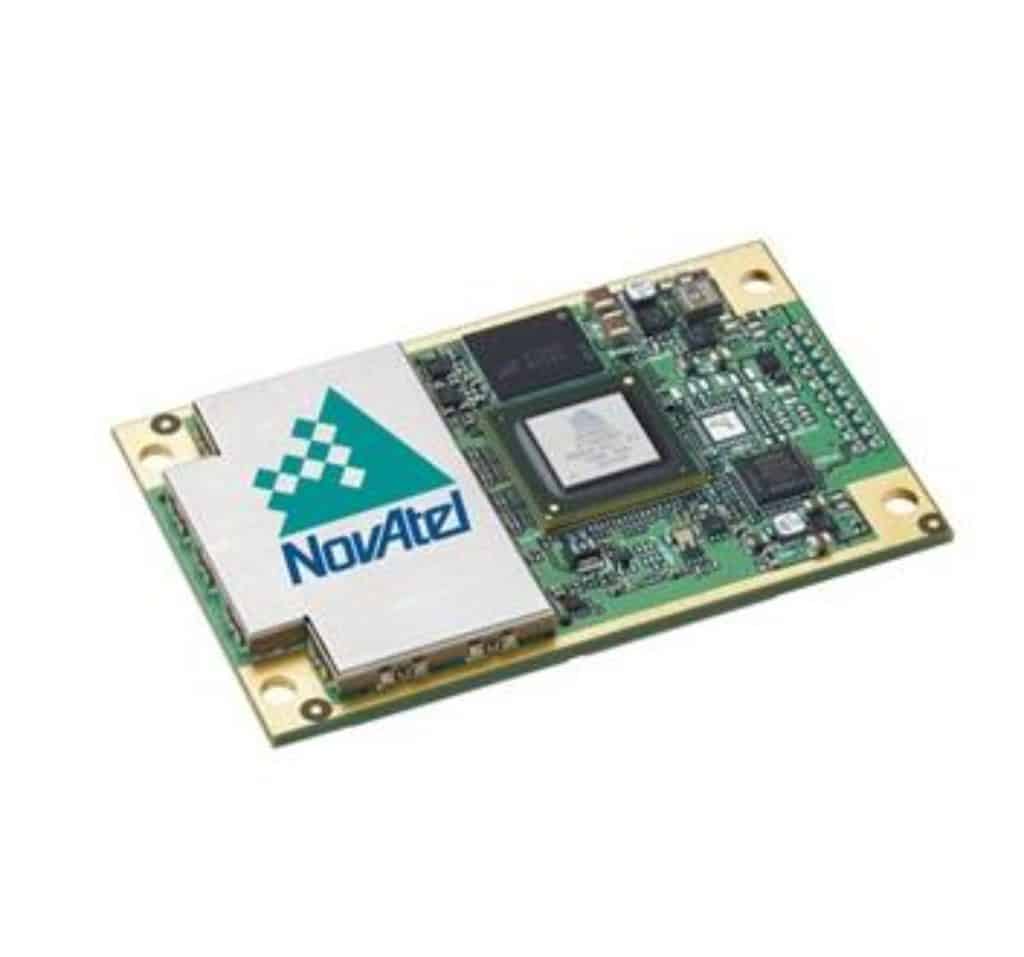

NovAtel OEM719 Multi-Frequency receiver
Item #: OEM719

OEM719 Multi-Frequency GNSS Receiver

For SPAN® (GNSS+INS capability)  see the SPAN Models tab

The NovAtel OEM719 Multi-frequency GNSS receiver delivers precise positioning while retaining backwards compatibility with NovAtels OEM615™ and OEM617™  form factors.

Request Info / Pricing
SKU: OEM719 Categories: , , , Manufacturer: NovAtel

NovAtel OEM719 Multi-Frequency GNSS Receiver

For SPAN® (GNSS+INS capability)  see the SPAN Models tab

The OEM719 is a multi-frequency, backward compatible GNSS receiver. It is form factor and pin compatible with the NovAtel OEM615 and OEM617 form factors. With its 555 available channels, the OEM719 is capable of tracking all current and upcoming constellation and satellite signals, including GPS, GLONASS, Galileo, BeiDou, QZSS and IRNSS.

The OEM719 can be scaled to offer sub-meter- to centimeter-level positioning and is field upgradable to all the OEM7 family firmware options, including NovAtel CORRECT with RTK for centimetre level real-time positioning, GLIDE for decimeter level pass-to-pass accuracy and SPAN for continuous 3D position, velocity and attitude.
FEATURES
  • 555 channel all-constellation multi-frequency positioning solution
  • Multi-channel L-Band supports TerraStar correction services
  • Advanced interference visualization and mitigation features
  • Firmware solutions including RTK, GLIDE, STEADYLINE, SPAN and ALIGN
  • Simple to integrate, small form-factor with 20 g vibration performance rating
  • Compatible with existing OEM719 integrations

NovAtel OEM719 Multi-Frequency GNSS Receiver Data Sheet

NovAtel OEM7 Series GNSS Receivers Brochure



Triple-Frequency
OEM719-CFN-RNN-TBN: GPS/GLO/BDS, L1/L2/L5/B1/B2/B3, NovAtel CORRECT RT2 PPP Single Point DGPS PNT, 20 Hz Data, Output Rate, Base Station Corrections Plus Measurements

OEM719-DFN-RNN-TBN: GPS/GLO, L1/L2/L3/L5, NovAtel CORRECT RT2 PPP Single Point DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM719-FFN-LNN-TBN: GPS/GLO/GAL/BDS, L1/L2/L5/E1/E5a/E5b/AltBOC/B1/B2/B3, Single Point DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM719-FFN-RNN-TBN: GPS/GLO/GAL/BDS, L1/L2/L5/E1/E5a/E5b/AltBOC/B1/B2/B3, NovAtel CORRECT RT2 PPP Single Point DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM719-GFN-LNN-TMN: GPS, L1/L2/L5, Single Point DGPS PNT, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

OEM719-TFN-LNN-TBN: GPS/GLO/GAL, L1/L2/L5/E1/E5a/E5b/AltBOC, Single Point DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

Dual-Frequency
OEM719-CDN-LYN-TNN: GPS/GLO/BDS, L1/L2/B1/B2, Single Point DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate

OEM719-CDN-PNN-TBN: GPS/GLO/BDS, L1/L2/B1/B2, NovAtel CORRECT PPP Single Point DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM719-CDN-RNN-TBN: GPS/GLO/BDS, L1/L2/B1/B2, NovAtel CORRECT RT2 PPP Single Point DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM719-DDN-LNN-TBN: GPS/GLO, L1/L2, Single Point DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM719-DDN-LNN-TMN: GPS/GLO, L1/L2, Single Point DGPS PNT, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

OEM719-DDN-LNN-TNN: GPS/GLO, L1/L2, Single Point DGPS PNT, 20 Hz Data Output Rate

OEM719-DDN-LYN-TBN: GPS/GLO, L1/L2, Single Point DGPS PNT, ALIGN Relative Positioning, 20 Hz
Data Output Rate, Base Station Corrections Plus Measurements

OEM719-DDN-LYN-TMN: GPS/GLO, L1/L2, Single Point DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

OEM719-DDN-LYN-TNN: GPS/GLO, L1/L2, Single Point DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate

OEM719-DDN-LZN-TBN: GPS/GLO, L1/L2, Single Point DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM719-DDN-LZN-TNN: GPS/GLO, L1/L2, Single Point DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate

OEM719-DDN-NZN-NNN: GPS/GLO, L1/L2, No Positioning, ALIGN Heading

OEM719-DDN-PNN-TBN: GPS/GLO, L1/L2, NovAtel CORRECT PPP Single Point DGPS PNT, 20 Hz Data Output Rate, Base Station, Corrections Plus Measurements

OEM719-DDN-PNN-TMN: GPS/GLO, L1/L2, NovAtel CORRECT PPP Single Point DGPS PNT, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

OEM719-DDN-PNN-TNN: GPS/GLO, L1/L2, NovAtel CORRECT PPP Single Point DGPS PNT, 20 Hz Data Output Rate

OEM719-DDN-PYN-TBN: GPS/GLO, L1/L2, NovAtel CORRECT PPP Single Point DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM719-DDN-PZN-TBN: GPS/GLO, L1/L2, NovAtel CORRECT PPP Single Point DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM719-DDN-RNN-TBN: GPS/GLO, L1/L2, NovAtel CORRECT RT2 PPP Single Point DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM719-DDN-RYN-TBN: GPS/GLO, L1/L2, NovAtel CORRECT RT2 PPP Single Point DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM719-DDN-RZN-TBN: GPS/GLO, L1/L2, NovAtel CORRECT RT2 PPP Single Point DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM719-GDN-LNN-TBN: GPS, L1/L2, Single Point DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM719-GDN-LNN-TMN: GPS, L1/L2, Single Point DGPS PNT, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

OEM719-GDN-PNN-TBN: GPS, L1/L2, NovAtel CORRECT PPP Single Point DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM719-GDN-RNN-TBN: GPS, L1/L2, NovAtel CORRECT RT2 PPP Single Point DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus  Measurements

Single-Frequency
OEM719-DSN-LNN-TNN: GPS/GLO, L1 , Single Point DGPS PNT, 20 Hz Data Output Rate

OEM719-GSN-LNN-CNN: GPS, L1, Single Point DGPS PNT, 100 Hz Data Output Rate

OEM719-GSN-LNN-TBN: GPS, L1 , Single Point DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus  Measurements

OEM719-GSN-LNN-TNN: GPS, L1, Single Point DGPS PNT, 20 Hz Data Output Rate

OEM719-TSN-LNN-TBN: GPS/GLO GAL, L1/E1, Single Point DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus  Measurements

OEM719-TSN-LNN-TMN: GPS/GLO GAL, L1/E1, Single Point DGPS PNT, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

Triple-Frequency

OEM719-DFN-RNN-TBN-S1: OEM719, GPS+GLO+QZSS, L1/L2/L3/L5/L6, SBAS L1/L5, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled , Entry level IMU

OEM719-FFN-RNN-TBE-P1: OEM719, GPS+GLO+GAL+BDS+QZSS, L1/L2/L5/L6/E1/E5a/E5b/AltBOC/E6/B1/B2I/B2b/B2a/B3, NavIC L5, SBAS L1/L5, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation and Spoofing Detection, SPAN Enabled, Profiles/Heave enabled, Entry level IMU

OEM719-FFN-RNN-TBE-P2: GPS+GLO+GAL+BDS+QZSS, L1/L2/L5/L6/E1/E5a/E5b/AltBOC/E6/B1/B2I/B2b/B2a/B3, NavIC L5, SBAS L1/L5 RT2+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation + Spoofing Detection, SPAN enabled with Relative INS + Profiles (includes Heave), Mid Grade Tactical IMU Includes GLIDE & RAIM.

OEM719-FFN-RNN-TBE-P3: OEM719, GPS+GLO+GAL+BDS+QZSS, L1/L2/L5/L6/E1/E5a/E5b/AltBOC/E6/B1/B2I/B2b/B2a/B3, NavIC L5, SBAS L1/L5, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation and Spoofing Detection, SPAN Enabled, Profiles/Heave enabled, High grade tactical

OEM719-FFN-RNN-TBE-S1: GPS+GLO+GAL+BDS+QZSS, L1/L2/L5/L6/E1/E5a/E5b/AltBOC/E6/B1/B2I/B2b/B2a/B3, NavIC L5, SBAS L1/L5, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation and Spoofing Detection, SPAN Enabled, Entry Level IMU

OEM719-FFN-RNN-TBE-S2: GPS+GLO+GAL+BDS+QZSS, L1/L2/L5/L6/E1/E5a/E5b/AltBOC/E6/B1/B2I/B2b/B2a/B3, NavIC L5, SBAS L1/L5, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation and Spoofing Detection, SPAN Enabled, Mid Grade Tactical IMU

OEM719-FFN-RNN-TBE-S3: GPS+GLO+GAL+BDS+QZSS, L1/L2/L5/L6/E1/E5a/E5b/AltBOC/E6/B1/B2I/B2b/B2a/B3, NavIC L5, SBAS L1/L5, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation and Spoofing Detection, SPAN Enabled, High Grade Tactical IMU

OEM719-FFN-RNN-TBE-S4: GPS+GLO+GAL+BDS+QZSS, L1/L2/L5/L6/E1/E5a/E5b/AltBOC/E6/B1/B2I/B2b/B2a/B3, NavIC L5, SBAS L1/L5, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation and Spoofing Detection, SPAN Enabled, Navigation Grade IMU



Dual-Frequency

OEM719-CDN-RNN-TBN-S1: OEM719, GPS+GLO+BDS+QZSS, L1/L2/B1/B2I/B2b, SBAS L1, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled , Entry level IMU

OEM719-CDN-RNN-TBN-S2: GPS+GLO+BDS+QZSS, L1/L2/B1/B2I/B2b, SBAS L1, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled , Mid grade tactical

OEM719-DDN-RNN-TBN-P1: GPS+GLO+QZSS, L1/L2, SBAS L1, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled with Profiles (includes Heave), Entry Level IMU

OEM719-DDN-RNN-TBN-S1: GPS+GLO+QZSS, L1/L2, SBAS L1, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, Entry Level IMU

OEM719-DDN-RNN-TBN-S2: GPS+GLO+QZSS, L1/L2, SBAS L1, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, Mid Grade Tactical IMU

OEM719-DDN-RNN-TBN-S3: GPS+GLO+QZSS, L1/L2, SBAS L1, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, High Grade Tactical IMU

OEM719-DDN-RNN-TBN-S4: GPS+GLO+QZSS, L1/L2, SBAS L1, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, Navigation Grade IMU

OEM719-FDN-RNN-TBE-P1: OEM719, GPS+GLO+GAL+BDS, L1/L2/E1/E5B/B1/B2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation, SPAN Enabled, Profiles/Heave enabled, Entry level IMU

OEM719-GDN-RNN-TBN-S1: GPS+QZSS, L1/L2, SBAS L1, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, Entry Level IMU

OEM719-GDN-RNN-TBN-S2: GPS+QZSS, L1/L2, SBAS L1, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled , Mid grade tactical
