NovAtel OEM7720 Dual-antenna, Multi-Frequency Receiver
Item #: OEM7720

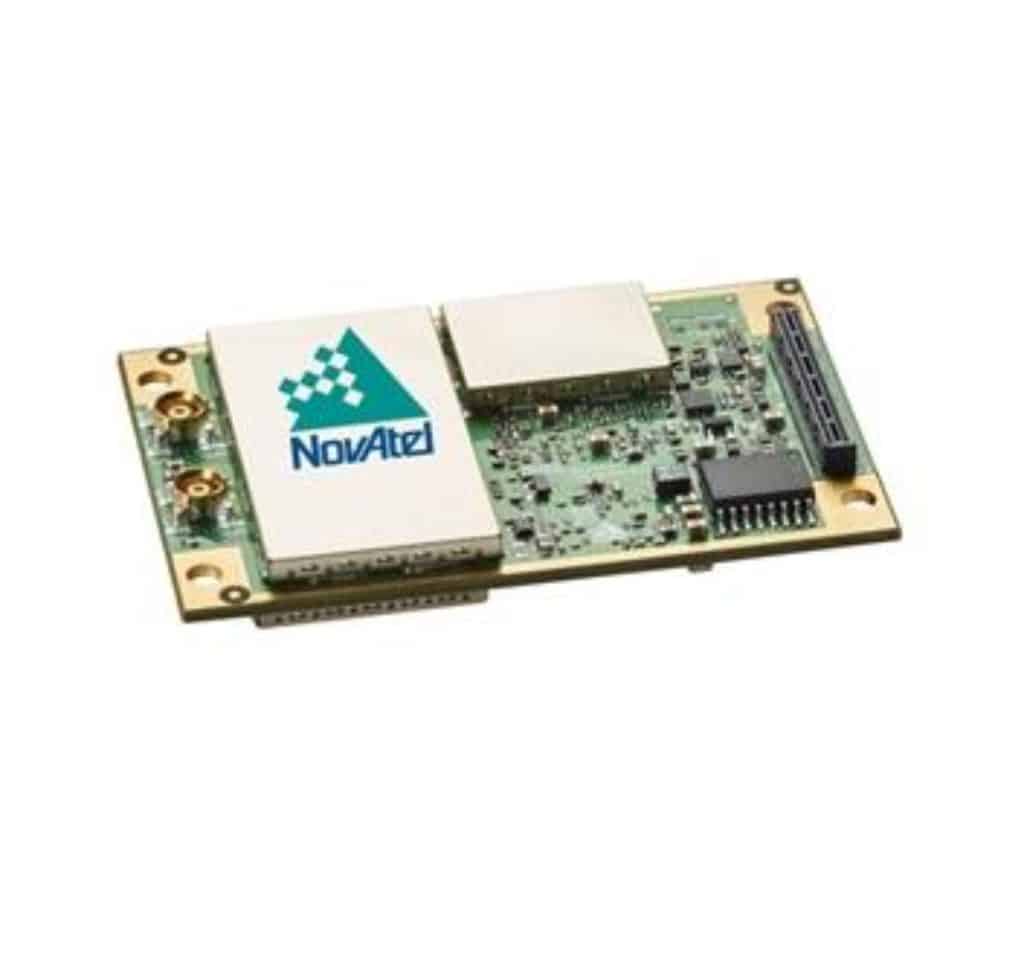

OEM7720 Dual-Antenna, Multi-Frequency GNSS Receiver

Dual-antenna input, multi-frequency GNSS receiver offers precise positioning plus SPAN functionality for space constrained applications.

Request Info / Pricing
SKU: OEM7720 Categories: , , , Manufacturer: NovAtel

OEM7720 Dual-Antenna, Multi-Frequency GNSS Receiver

The OEM7720 is a multi-frequency, dual-antenna receiver that delivers robust heading and positioning along with advanced interference mitigation features.
For maximum flexibility, it uses a 555 channel architecture capable of tracking all current and upcoming GNSS constellations.

The OEM7720 can be scaled to offer sub-meter- to centimeter-level positioning and is field upgradable to all OEM7 family software options, including NovAtel CORRECT with RTK, ALIGN, GLIDE and SPAN.
FEATURES
  • 555 channel all-constellation multi-frequency heading and positioning solution
  • Multi-channel L-Band supports TerraStar correction services
  • Serial, USB, CAN and Ethernet connectivity with web interface
  • Advanced interference visualization and mitigation features
  • Firmware solutions including RTK, GLIDE, STEADYLINE, SPAN and ALIGN
  • Simple to integrate, small form factor with 20 g vibration performance rating
  • SPAN INS functionality

NovAtel OEM7720 Dual-Antenna, Multi-Frequency GNSS Receiver Data Sheet

NovAtel OEM7 Series GNSS Receivers Brochure

Card


OEM7720-DSN-LNN-TNN: GPS, GLO, L1 , Single Antenna Activation, Single Point, DGPS PNT, 20 Hz Data Output Rate

OEM7720-GDD-LZN-TNN: GPS, L1/L2, Dual Antenna Activation, Single Point, DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate

OEM7720-GSN-LNN-TNN: GPS, L1 , Single Antenna Activation, Single Point, DGPS PNT, 20 Hz Data Output Rate



Dual-Frequency


OEM7720-DDD-LZN-TNN: GPS, GLO, L1/L2, Dual Antenna Activation, Single Point, DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate

OEM7720-DDD-PZN-TMN: GPS, GLO, L1/L2, Dual Antenna Activation, NovAtel CORRECT PPP, SinglePoint, DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

OEM7720-DDD-RYN-TBN: GPS, GLO, L1/L2, Dual Antenna Activation, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM7720-DDD-RZN-CBN: GPS, GLO, L1/L2, Dual Antenna Activation, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, ALIGN Heading, 100 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM7720-DDD-RZN-TBN: GPS, GLO, L1/L2, Dual Antenna Activation, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM7720-DDN-LNN-TMN: GPS, GLO, L1/L2, Single Antenna Activation, Single Point, DGPS PNT, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

OEM7720-DDN-PNN-TBN: GPS, GLO, L1/L2, Single Antenna Activation, NovAtel CORRECT 1nPPP, Single Point, DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM7720-DDN-RNN-CBN: GPS, GLO, L1/L2, Single Antenna Activation, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, 100 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM7720-DDN-RNN-TBN: GPS, GLO, L1/L2, Single Antenna Activation, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM7720-DDN-RYN-TBN: GPS, GLO, L1/L2, Single Antenna Activation, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM7720-FDD-LNN-TBN: GPS, GLO, GAL, BDS, L1/L2/E1/E5b/B1/B2, Dual Antenna Activation, Single Point, DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM7720-FDD-PNN-TBN: GPS, GLO, GAL, BDS, L1/L2/E1/E5b/B1/B2, Dual Antenna Activation, NovAtel CORRECT PPP, Single Point, DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM7720-FDD-RNN-TBN: GPS, GLO, GAL, BDS, L1/L2/E1/E5b/B1/B2, Dual Antenna Activation, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM7720-FDD-RYN-TBE: GPS, GLO, GAL, BDS, L1/L2/E1/E5B/B1/B2, Dual Antenna Activation, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements, Interference Mitigation

OEM7720-FDD-RYN-TBN: GPS, GLO, GAL, BDS, L1/L2/E1/E5b/B1/B2, Dual Antenna Activation, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM7720-FDD-RYN-TBN-P1: GPS, GLO, GAL, BDS, L1/L2/E1/E5B/B1/B2, Dual Antenna Activation, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements, SPAN Enabled, Profiles/Heave enabled, Entry level IMU

OEM7720-FDD-RYN-TBN-S1: GPS, GLO, GAL, BDS, L1/L2/E1/E5B/B1/B2, Dual Antenna Activation, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements, SPAN enabled , Entry level IMU

OEM7720-FDD-RZN-TBN: GPS, GLO, GAL, BDS, L1/L2/E1/E5b/B1/B2, Dual Antenna Activation, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM7720-GDD-LZN-TBN: GPS, L1/L2, Dual Antenna Activation, Single Point, DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM7720-GDD-RYN-TBN: GPS, L1/L2, Dual Antenna Activation, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM7720-GDD-RZN-TBN: GPS, L1/L2, Dual Antenna Activation, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements

OEM7720-TDD-RZN-TBN: GPS, GLO, GAL, L1/L2/E1/E5b, Dual Antenna Activation, NovAtel CORRECT RT2, PPP, Single Point, DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections Plus Measurements



Single-Frequency


OEM7720-GSN-NNN-NNN: Hardware only, requires firmware upgrade to produce output

Dual-Frequency

OEM7720-CDD-RYN-TBE-P3 OEM7720, GPS+GLO+BDS+QZSS, L1/L2/B1/B2I/B2b, SBAS L1, Dual Antenna Activation, RTK+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation and Spoofing Detection, SPAN Enabled, Profiles/Heave enabled, High grade tactical

OEM7720-CDD-RZN-TBE-P1 OEM7720, GPS+GLO+BDS+QZSS, L1/L2/B1/B2I/B2b, SBAS L1, Dual Antenna Activation, RTK+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation and Spoofing Detection, SPAN Enabled, Profiles/Heave enabled, Entry level IMU

OEM7720-CDD-RZN-TBN-P1 GPS+GLO+BDS+QZSS, L1/L2/B1/B2I/B2b, SBAS L1, Dual Antenna Activation, RTK+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, Profiles/Heave enabled, Entry level IMU

OEM7720-CDD-RZN-TBN-P1-A OEM7720, GPS+GLO+BDS+QZSS, L1/L2/B1/B2I/B2b, SBAS L1, Dual Antenna Activation, RTK+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, Profiles/Heave enabled, Entry level IMU, API

OEM7720-CDD-RZN-TBN-S1 GPS+GLO+BDS+QZSS, L1/L2/B1/B2I/B2b, SBAS L1, Dual Antenna Activation, RTK+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled , Entry level IMU

OEM7720-CDD-RZN-TBN-S3 OEM7720, GPS+GLO+BDS+QZSS, L1/L2/B1/B2I/B2b, SBAS L1, Dual Antenna Activation, RTK+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled , High grade tactical

OEM7720-DDD-RYN-TBE-S2 GPS+GLO+QZSS, L1/L2, SBAS L1, Dual Antenna Activation, RTK+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation and Spoofing Detection, SPAN enabled , Mid grade tactical

OEM7720-DDD-RYN-TBN-P1 OEM7720, GPS+GLO, L1/L2, Dual Antenna Activation, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, Profiles/Heave enabled, Entry level IMU

OEM7720-DDD-RYN-TBN-S1 GPS+GLO+QZSS, L1/L2, SBAS L1, Dual Antenna Activation, RTK+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, Entry Level IMU

OEM7720-DDD-RZN-TBE-P1 GPS+GLO+QZSS, L1/L2, SBAS L1, Dual Antenna Activation, RTK+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation and Spoofing Detection, SPAN enabled with Profiles (includes Heave), Entry Level IMU

OEM7720-DDD-RZN-TBE-S1 OEM7720, GPS+GLO+QZSS, L1/L2, SBAS L1, Dual Antenna Activation, RTK+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation and Spoofing Detection, SPAN enabled , Entry level IMU

OEM7720-DDD-RZN-TBN-P1 GPS+GLO+QZSS, L1/L2, SBAS L1, Dual Antenna Activation, RTK+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled with Profiles (includes Heave), Entry Level IMU

OEM7720-DDD-RZN-TBN-P2 OEM7720, GPS+GLO, L1/L2, Dual Antenna Activation, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, Profiles/Heave enabled, Mid grade tactical

OEM7720-DDD-RZN-TBN-S1 GPS+GLO+QZSS, L1/L2, SBAS L1, Dual Antenna Activation, RTK+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, Entry Level IMU

OEM7720-DDD-RZN-TBN-S2 GPS+GLO+QZSS, L1/L2, SBAS L1, Dual Antenna Activation, RTK+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, Mid Grade Tactical IMU

OEM7720-DDD-RZN-TBN-S2-A OEM7720, GPS+GLO+QZSS, L1/L2, SBAS L1, Dual Antenna Activation, RTK+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled , Mid grade tactical, API

OEM7720-DDD-RZN-TBN-S3 GPS+GLO+QZSS, L1/L2, SBAS L1, Dual Antenna Activation, RTK+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, High Grade Tactical IMU

OEM7720-DDN-RNN-TBN-P1 OEM7720, GPS+GLO+QZSS, L1/L2, SBAS L1, Single Antenna Activation, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, Profiles/Heave enabled, Entry level IMU

OEM7720-DDN-RNN-TBN-S1 GPS+GLO+QZSS, L1/L2, SBAS L1, Single Antenna Activation, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled , Entry level IMU

OEM7720-DDN-RZN-TBN-P1 OEM7720, GPS+GLO+QZSS, L1/L2, SBAS L1, Single Antenna Activation, RTK+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, Profiles/Heave enabled, Entry level IMU

OEM7720-FDD-RNN-TBE-S1 GPS+GLO+GAL+BDS+QZSS, L1/L2/E1/E5b/B1/B2I/B2b, SBAS L1, Dual Antenna Activation, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation and Spoofing Detection, SPAN enabled , Entry level IMU

OEM7720-FDD-RYN-TBE-P1 OEM7720, GPS+GLO+GAL+BDS+QZSS, L1/L2/E1/E5B/B1/B2I/B2b, SBAS L1, Dual Antenna Activation, RTK+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation and Spoofing Detection, SPAN Enabled, Profiles/Heave enabled, Entry level IMU

OEM7720-FDD-RYN-TBE-P3-A OEM7720, GPS+GLO+GAL+BDS+QZSS, L1/L2/E1/E5B/B1/B2I/B2b, SBAS L1, Dual Antenna Activation, RTK+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation and Spoofing Detection, SPAN Enabled, Profiles/Heave enabled, High grade tactical, API

OEM7720-FDD-RYN-TBE-S1 GPS+GLO+GAL+BDS+QZSS, L1/L2/E1/E5B/B1/B2I/B2b, SBAS L1, Dual Antenna Activation, RTK+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation and Spoofing Detection, SPAN enabled , Entry level IMU

OEM7720-FDD-RYN-TBN-P1 GPS+GLO+GAL+BDS+QZSS, L1/L2/E1/E5B/B1/B2I/B2b, SBAS L1, Dual Antenna Activation, RTK+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, Profiles/Heave enabled, Entry level IMU

OEM7720-FDD-RYN-TBN-S1 GPS+GLO+GAL+BDS+QZSS, L1/L2/E1/E5B/B1/B2I/B2b, SBAS L1, Dual Antenna Activation, RTK+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled , Entry level IMU

OEM7720-FDD-RYN-TBN-S2 GPS+GLO+GAL+BDS+QZSS, L1/L2/E1/E5b/B1/B2I/B2b, SBAS L1, Dual Antenna Activation, RTK+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, Mid Grade Tactical IMU

OEM7720-FDD-RYN-TBN-S3 OEM7720, GPS+GLO+GAL+BDS+QZSS, L1/L2/E1/E5B/B1/B2I/B2b, SBAS L1, Dual Antenna Activation, RTK+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled , High grade tactical

OEM7720-FDD-RYN-TBN-S3-A OEM7720, GPS+GLO+GAL+BDS+QZSS, L1/L2/E1/E5B/B1/B2I/B2b, SBAS L1, Dual Antenna Activation, RTK+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled , High grade tactical, API

OEM7720-FDD-RZN-TBE-S1 GPS+GLO+GAL+BDS+QZSS, L1/L2/E1/E5B/B1/B2I/B2b, SBAS L1, Dual Antenna Activation, RTK+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation and Spoofing Detection, SPAN enabled , Entry level IMU

OEM7720-FDD-RZN-TBN-P1 OEM7720, GPS+GLO+GAL+BDS, L1/L2/E1/E5B/B1/B2, Dual Antenna Activation, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, Profiles/Heave enabled, Entry level IMU

OEM7720-FDD-RZN-TBN-S1 GPS+GLO+GAL+BDS+QZSS, L1/L2/E1/E5b/B1/B2I/B2b, SBAS L1, Dual Antenna Activation, RT2+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled , Entry level IMU Includes GLIDE & RAIM

OEM7720-FDD-RZN-TBN-S2 GPS+GLO+GAL+BDS+QZSS, L1/L2/E1/E5b/B1/B2I/B2b, SBAS L1, Dual Antenna Activation, RTK+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, Mid Grade Tactical IMU

OEM7720-FDD-RZN-TBN-S3 GPS+GLO+GAL+BDS+QZSS, L1/L2/E1/E5B/B1/B2I/B2b, SBAS L1, Dual Antenna Activation, RTK+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled , High grade tactical

OEM7720-FDN-RYN-TBN-S1 GPS+GLO+GAL+BDS+QZSS, L1/L2/E1/E5B/B1/B2I/B2b, SBAS L1, Single Antenna Activation, RTK+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled , Entry level IMU

OEM7720-FDN-RYN-TBN-S2 GPS+GLO+GAL+BDS+QZSS, L1/L2/E1/E5B/B1/B2I/B2b, SBAS L1, Single Antenna Activation, RTK+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled , Mid grade tactical

OEM7720-FDN-RYN-TBN-S3 GPS+GLO+GAL+BDS+QZSS, L1/L2/E1/E5B/B1/B2I/B2b, SBAS L1, Single Antenna Activation, RTK+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled , High grade tactical

OEM7720-GDD-RZN-TBN-S1 GPS+QZSS, L1/L2, SBAS L1, Dual Antenna Activation, RTK+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled, Entry Level IMU

OEM7720-PDD-RYN-TBN-S1 GPS+BDS+QZSS, L1/L2/B1/B2I/B2b, SBAS L1, Dual Antenna Activation, RTK+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled , Entry level IMU

OEM7720-TDD-RYN-TBN-P1 OEM7720, GPS+GLO+GAL+QZSS, L1/L2/E1/E5b, SBAS L1, SBAS L1, Dual Antenna Activation, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, Profiles/Heave enabled, Entry level IMU

OEM7720-WDD-RYN-TBN-P1 OEM7720, GPS+GAL+QZSS, L1/L2/E1/E5b, SBAS L1, SBAS L1, Dual Antenna Activation, RTK+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, Profiles/Heave enabled, Entry level IMU
