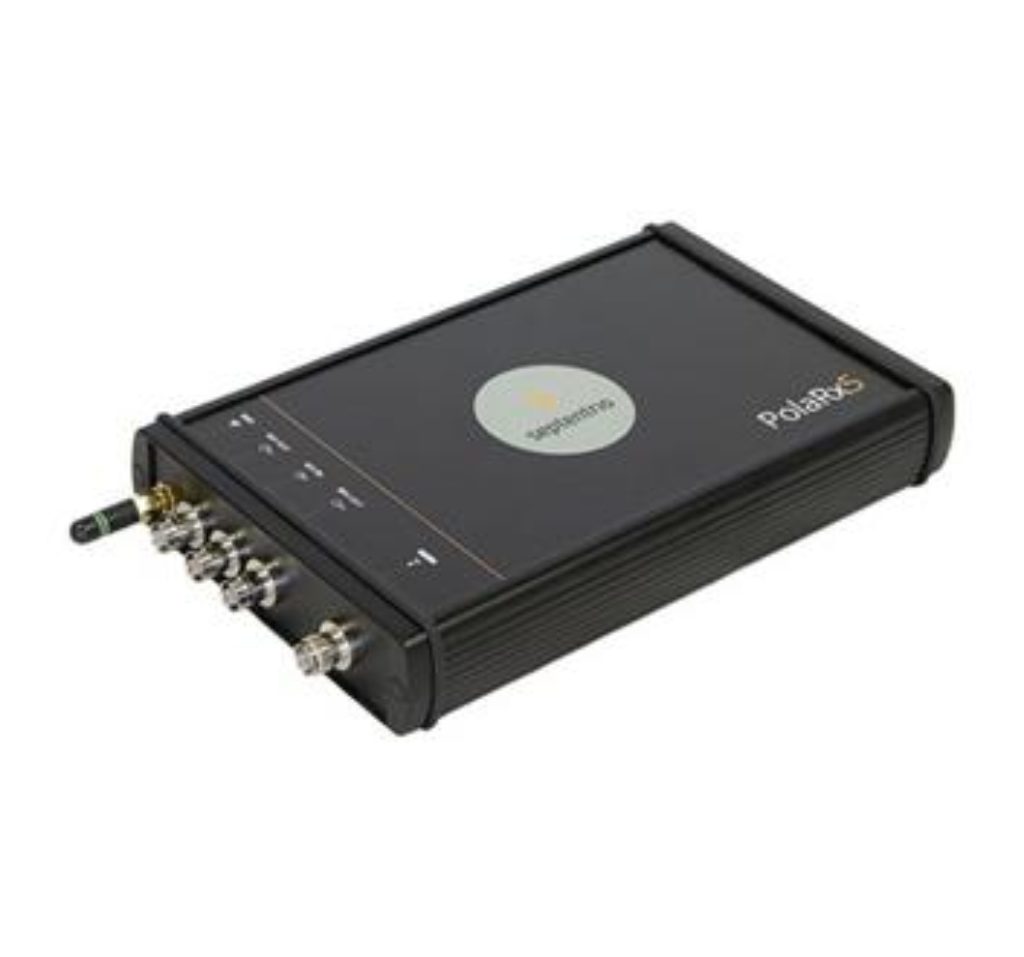

Septentrio PolaRx5 Multi-frequency GNSS Receiver
The PolaRx5 is a versatile and robust multi-frequency GNSS reference receiver from Septentrio. The unique tracking design provides measurements with the low noise while monitoring and protecting against ionospheric interference, multipath and other environmental effects.
The PolaRx5 was developed specifically to support the most demanding applications for the earth science community offering a select range of advanced features to enable maximum accuracy and functionality.
Powered by Septentrios next generation multi-frequency engine, the PolaRx5 offers 544 hardware channels for robust and high quality GNSS tracking. And it includes Septentrios field-proven Advanced Interference Mitigation (AIM ) technology to filter out both intentional and unintentional sources of radio interference from narrowband signals over high powered pulsed signals to chirp jammers and Iridium interferers.
Septentrios patented APME multipath mitigation technology unique in eliminating short delay multipath without introduction of bias guarantees superior measurement quality. If needed, the user has the ability to activate or deactivate APME to obtain completely unmodified measurements.
Furthermore, various independent tests have shown PolaRx5 consistently ranks highest among GNSS receivers in many areas of measurement quality, including fewest number of cycle slips and lowest power consumption well below 2W.
Key Features
-
Tracks all visible GNSS signals (GPS, GLONASS,Galileo, BeiDou, IRNSS)
-
High precision, low noise measurements
-
Unique interference monitoring
-
Powerful web interface and logging tools
-
Rugged housing and multiple interfaces
-
Up to 8 independent logging sessions
-
Logging both internally and to an external device
