Septentrio AsteRx-m OEM Receiver

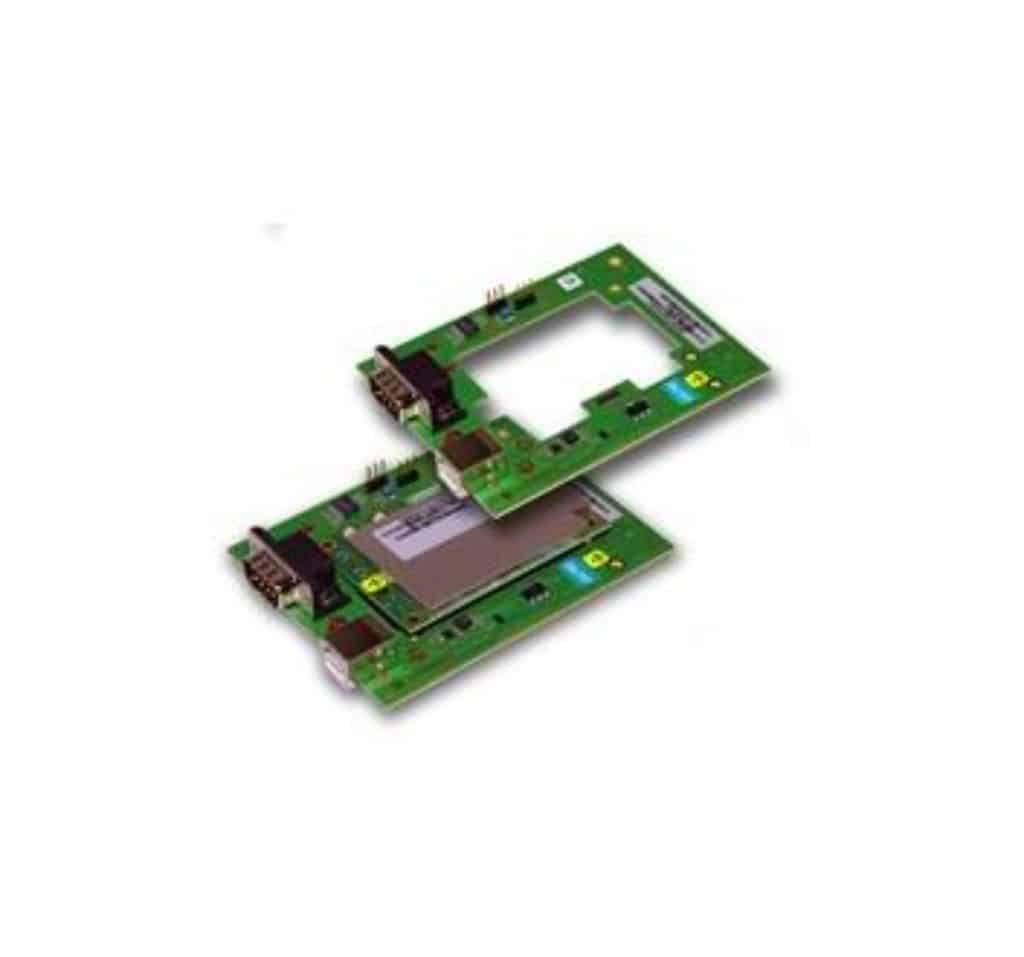

Septentrio AsteRx-m with Integrator Board Set
Septentrio AsteRx-m OEM Receiver
Septentrio AsteRx-m OEM Receiver
Septentrio AsteRx-m with Integrator Board Set
Septentrio AsteRx-m OEM Receiver
Item #: AsteRx-m

Septentrio AsteRx-m OEM Receivers

The manufacturer has issued an end of life (EOL) notice for this product. It has been replaced by the AsteRx-m2.

AsteRx-m is a very low power GPS/GLONASS dual-frequency RTK receiver smaller than a credit card, which is especially designed for integration in hand-held devices, mobile computing platforms and other solutions requiring high accuracy in low-power and space-constrained applications.

Discontinued - contact us
SKU: AsteRx-m Categories: , , Manufacturer: Septentrio

AsteRx-m OEM Receiver

The manufacturer has discontinued this product. The AsteRx-m has been replaced by the Asterx-m2.

The AsteRx-m is a very low power GPS / GLONASS dual-frequency RTK receiver that is smaller than a credit card. It is especially designed for integration in hand-held devices, mobile computing platforms and other solutions requiring high accuracy in low-power and space-constrained applications.

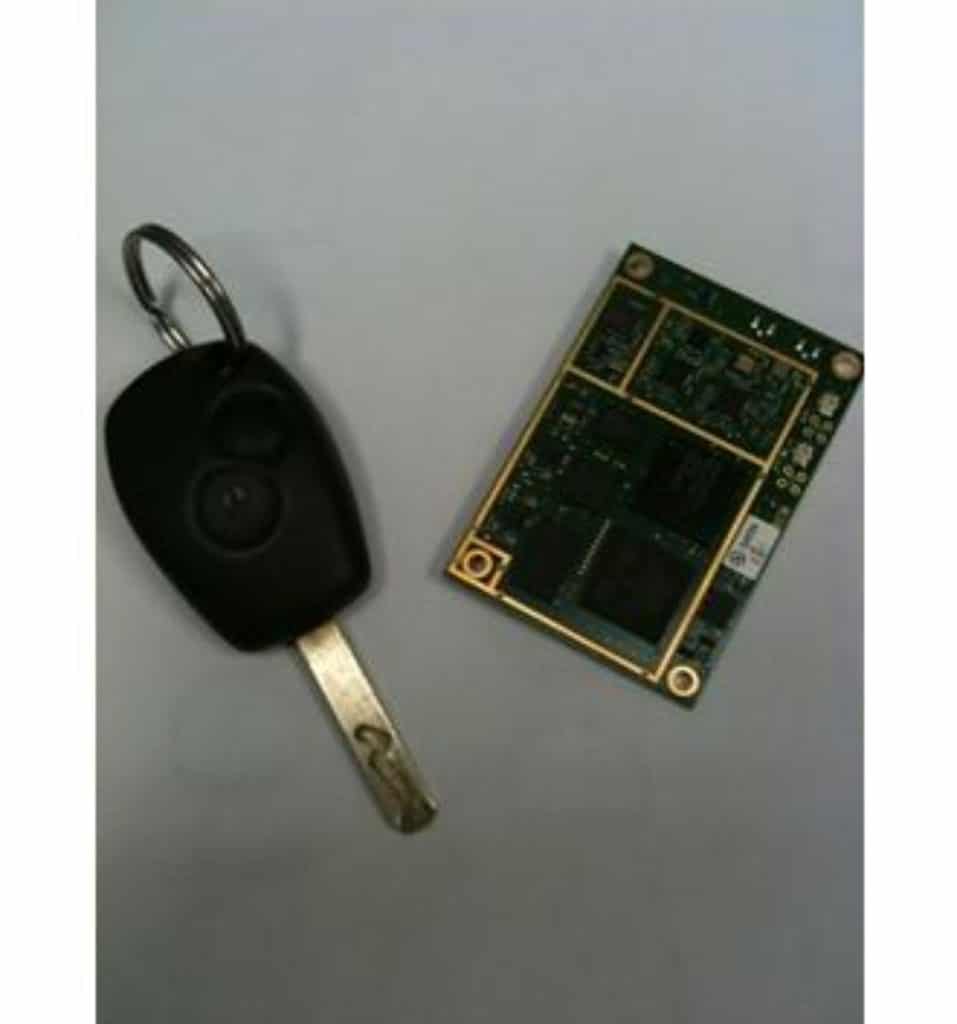

Measuring only 70mm x 48 mm, the AsteRx-m provides cm-level dual-frequency GPS RTK operation at less than 500 mW, and dual-frequency GPS/GLONASS RTK positioning at less than 600 mW. It is fully scalable from L1-only positioning to L1/L2 GPS/GLONASS operation.

Be sure to check out the integrator kit that is available (see below).

KEY FEATURES
  • Unique compact GPS/GLONASS RTK receiver
  • Industry leading low power consumption (600mW at full operation)
  • Centimeter-level RTK positioning accuracy
  • Special GNSS algorithms for solid industrial performance
  • Full EMI shielding
  • Easy to integrate, incl. extensive and well documented interface language
  • A comprehensive GNSS SW-tool set


Ax-m_GLO     Upgrade of AsteRx-m OEM GPS-only configuration with GLONASS
Ax-m_RTK      RTK + Moving Base option (RTK base/rover) (incl. DGPS) (Only for Dual
Ax-m_BASE   Outputs RTK Base corrections
Ax-m_Event   Event Marker option (2 marker inputs)
Ax-m_NCL     AsteRx-m with COCOM limits removed (an extra admin fee of 1500 Euro per order is required)

AsteRx-m OEM_L1            400108B1342
Single Frequency version of AsteRx-m OEM, in GPS only configuration, incl. SBAS, DGPS Base/Rover, RAIM, 25Hz Position and Raw Measurement output. Upgradable to dual-frequency.

AsteRx-m OEM_L1G         400108B1343
Single Frequency version of AsteRx-m OEM, in GPS/GLONASS configuration, incl. SBAS, DGNSS base/rover, RAIM, 25Hz Position and Raw Measurement output. Upgradable to dual-frequency

AsteRx-m OEM_L1 GGG   400108B1345
Single Frequency version of AsteRx-m OEM, in GPS/GLONASS/GALILEO configuration, incl. SBAS, DGNSS base/rover, RAIM, 25Hz Position and Raw Measurement output.

AsteRx-m OEM                  400108B1344
Dual frequency GPS/GLONASS receiver board. incl. SBAS, DGNSS base/rover, RAIM, 25Hz Position and Raw Measurement output (GPS-only configuration)



End of life (EOL) notice for the Septentrio AsteRx-m and AsteRx-m UAS

AsteRx-m2 GNSS RTK Receiver
