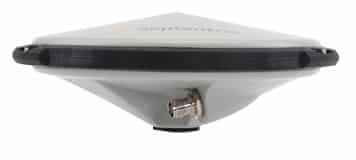

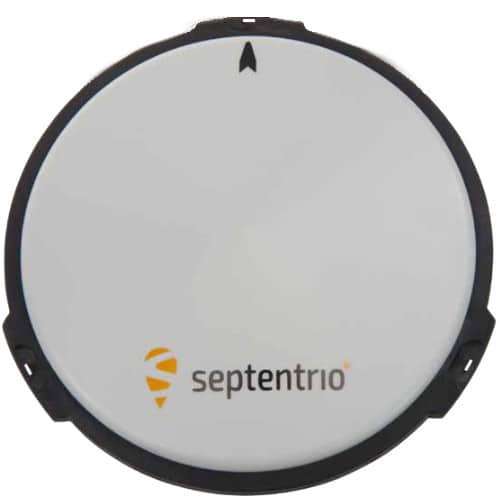

PolaNt-x MF High Performance Multi-Frequency Antenna

The Septentrio PolaNt-x MF is a lightweight high precision antenna for geodetic, survey and machine control applications. This high-gain antenna incorporates low-noise amplifiers, enables multifrequency GPS,GLONASS, Galileo, Compass and L-band signal reception. The antenna is built into a rugged and environmentally sealed housing.



1525MHz – 1610MHz L1 (GPS, GLONASS, GALILEO, COMPASS), L-band

1160MHz – 1252MHz L2 (GPS, GLONASS), L3 (GLONASS), L5/E5 (GPS,GALILEO, COMPASS)



Polarization RHCP



Axial Ratio 3dB max
