NovAtel SMART7 Antenna
Item #: SMART7-S

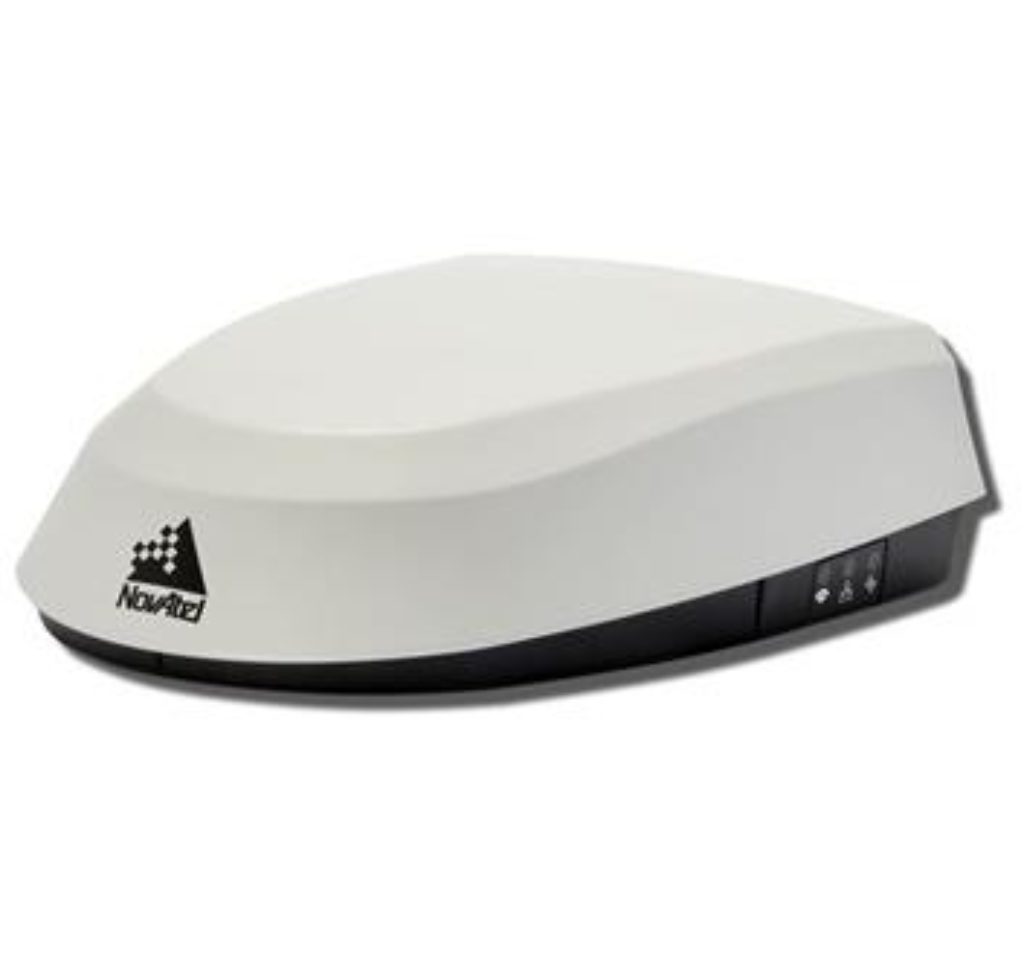

SMART7-S GNSS SMART Antenna

The SMART7-S combines a NovAtel OEM7 receiver, VEXXIS antenna and an Inertial Measurement Unit (IMU) in a durable and waterproof enclosure. The SPAN technology tightly couples the inertial measurements with GNSS to improve position accuracy, bridge GNSS outages, provide attitude information and terrain compensation.

Request Info / Pricing
SKU: SMART7-S Categories: , , , Manufacturer: NovAtel

NovAtel SMART7 Antenna

The SMART7-S combines a NovAtel OEM7 receiver, VEXXIS antenna and an Inertial Measurement Unit (IMU) in a durable and waterproof enclosure. The SPAN technology tightly couples the inertial measurements with GNSS to improve position accuracy, bridge GNSS outages, provide attitude information and terrain compensation.

All models in the SMART7 family are said to provide exceptional positioning availability using signals from all constellations and frequencies to deliver assured positioning anywhere. Each model includes a VEXXIS antenna, and supports TerraStar-C PRO, the newest offering from TerraStar correction services, which delivers 2.5 centimeters and convergence times of less than 18 minutes in most regions.

FEATURES
  • GPS, GLONASS, BeiDou, Galileo, QZSS plus TerraStar correction signal reception
  • Centimetre-level NovAtel CORRECT TerraStar-C PRO and RTK accuracy
  • Simultaneously track up to three TerraStar correction service satellites
  • 15 cm pass-to-pass accuracy using TerraStar-L
  • Integrated IMU for SPAN INS functionality
  • Optional heading and relative positioning using ALIGN
  • Advanced ISOBUS and CAN bus functionality supports firmware update
  • Supports NovAtel’s STEADYLINE and GLIDE
ATTRIBUTES
System Type: Enclosed with Antenna

General Info
Width 192
Length (mm) 220
Height (mm) 66
Weight (kg) 1.1
Typical Power Consumption (W) 4

Signal Tracking
GPS: L1, L2, L2C, L5
GLONASS: L1, L2
Galileo: E1, E5a/b, E5 AltBOC
BeiDou: B1l, B1C, B2l, B2a
QZSS: L1, L2
SBAS: L1
L-Band (TerraStar)

Number of Com Ports
RS-232: 3
CAN Bus: 1
1 PPS: 1
Ground Speed Output: 1

Performance Accuracy
Single Point L1/L2:     1.2 m RMS
SBAS:                         60 cm RMS
DGPS:                        40 cm RMS
TerraStar-C PRO:       2.5 cm RMS    3 cm 95%
RTK:                           2.5 cm 2 ppm (95%)

NovAtel SMART7-S SMART GNSS Antenna Data Sheet

SMART7-S Smart Antenna

Triple-Frequency

SM7S-FFN-RNN-TBN-P1: SMART7 with SPAN,GPS+GLO+GAL+BDS,
L1/L2/L5/E1/E5a/E5b/AltBOC/B1/B2/B3, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled with Profiles, level 1 IMU

SM7S-FFN-RYN-TBN-P1: SMART7 with SPAN,GPS+GLO+GAL+BDS,
L1/L2/L5/E1/E5a/E5b/AltBOC/B1/B2/B3, RTK+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled with Profiles, level 1 IMU

Dual-Frequency

SM7S-DDN-RNN-TBN-P1: SMART7 with SPAN,GPS+GLO, L1/L2, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled with Profiles, level 1 IMU

SM7S-DDN-RYN-TBN-P1: SMART7 with SPAN,GPS+GLO, L1/L2, RTK+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled with Profiles, level 1 IMU

SM7S-TDN-RNN-TBN-P1: SMART7 with SPAN, GPS+GLO+GAL, L1/L2/E1/E5b, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, Profiles/Heave enabled, Entry level IMU



SMART7-SI Smart Antenna

Triple-Frequency

SM7SI-FFN-RNN-TBN-P1: SMART7 with SPAN, WiFi, Ethernet, GPS+GLO+GAL+BDS,
L1/L2/L5/E1/E5a/E5b/AltBOC/B1/B2/B3, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled with Profiles, level 1 IMU

SM7SI-FFN-RYN-TBN-P1: SMART7 with SPAN, WiFi, Ethernet, GPS+GLO+GAL+BDS,
L1/L2/L5/E1/E5a/E5b/AltBOC/B1/B2/B3, RTK+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled with Profiles, level 1 IMU

Dual-Frequency

SM7SI-DDN-RNN-TBN-P1: SMART7 with SPAN, WiFi, Ethernet, GPS+GLO, L1/L2, RTK+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled with Profiles, level 1 IMU

SM7SI-DDN-RYN-TBN-P1: SMART7 with SPAN, WiFi, Ethernet, GPS+GLO, L1/L2, RTK+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled with Profiles, level 1 IMU

TerraStar-C Pro Multi-Constellation Correction Service

SMART7 Smart Antenna
