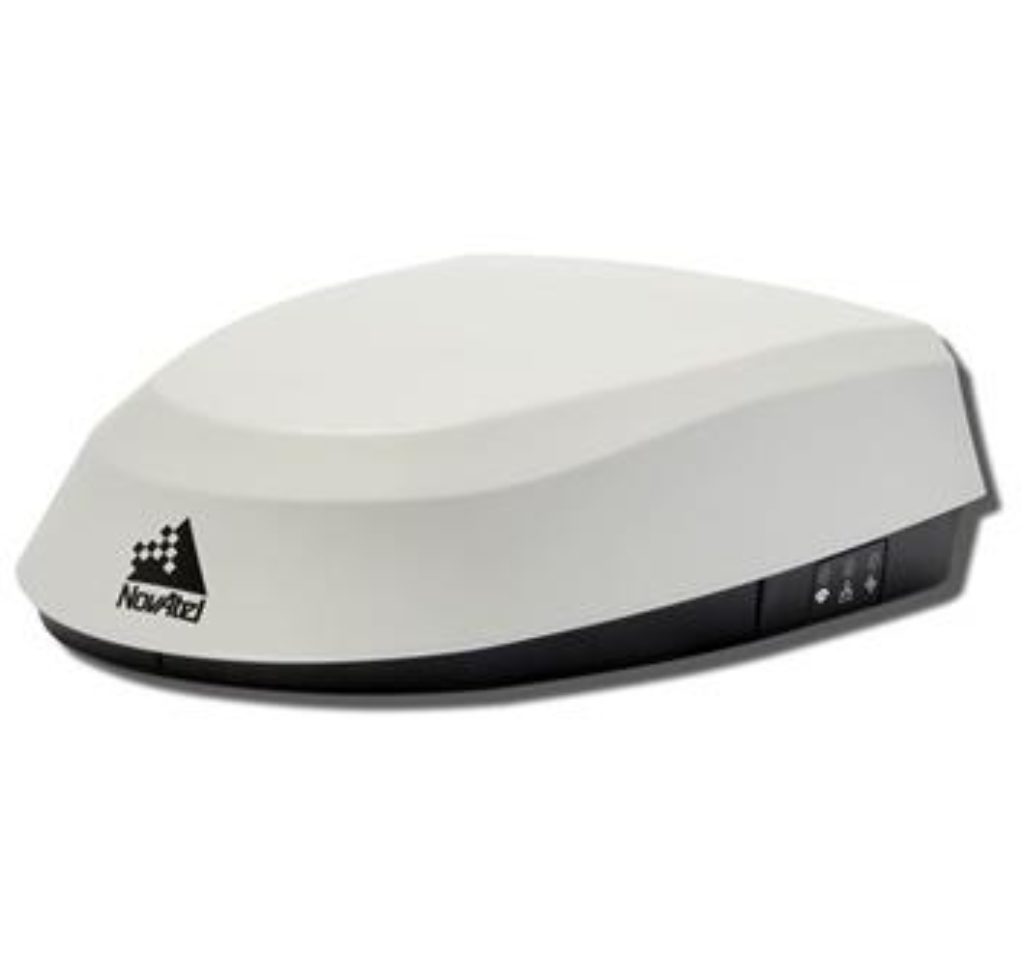

NovAtel SMART7 Antenna
Item #: SMART7

SMART7 Smart Antenna

The NovAtel SMART 7 smart antenna works especially well for demanding applications like precision agriculture and machine control. It is positioned to increase GNSS availability, accuracy and reliability, especially for major precision-agriculture equipment manufacturers.

Request Info / Pricing
SKU: SMART7 Categories: , , , Manufacturer: NovAtel

NovAtel SMART7 Antenna

The SMART7 multi-frequency SMART Antenna combines a NovAtel OEM7 receiver and precision antenna in a durable and waterproof enclosure. Access to multiple GNSS signals allow for better satellite availability under variable terrain and environmental conditions. The SMART7 also receives L-Band signals to access world-wide correction signals provided by TerraStar.

For users in need of wireless solutions for tablets and smartphones, the SMART7-W includes Wi-Fi and an integrated NTRIP client to provide connectivity via Wi-Fi and cellular gateways while the SMART7-I model adds Ethernet allowing easy connectivity to wired IP networks and devices. NovAtel’s SMART7 family of SMART antennas works especially well for demanding applications like precision agriculture and machine control and is positioned to increase GNSS  availability, accuracy and reliability for major precision-agriculture equipment manufacturers.


All models in the SMART7 family provide exceptional positioning availability using signals from all constellations and frequencies to deliver assured positioning anywhere. Each model includes a VEXXIS antenna, and supports TerraStar-C PRO correction service, which delivers 2.5 centimeters and convergence times of less than 18 minutes in most regions.

FEATURES
  • GPS, GLONASS, BeiDou, Galileo, QZSS plus TerraStar correction signal reception
  • Centimetre-level NovAtel CORRECT TerraStar-C PRO and RTK accuracy
  • Simultaneously track up to three TerraStar correction service satellites
  • 15 cm pass-to-pass accuracy using TerraStar-L
  • Optional heading and relative positioning using ALIGN
  • Integrated NTRIP client using optional Ethernet/WiFi interface
  • On board web UI for easier receiver configuration on some models
  • Advanced ISOBUS and CAN bus functionality supports firmware update
  • Supports NovAtel’s STEADYLINE and GLIDE
ATTRIBUTES
System Type: Enclosed with Antenna

General Info
Width 192
Length (mm) 220
Height (mm) 66
Weight (kg) 1.1
Typical Power Consumption (W) 4

Signal Tracking
GPS: L1, L2, L2C, L5
GLONASS: L1, L2
Galileo: E1, E5a/b, E5 AltBOC
BeiDou: B1l, B1C, B2l, B2a
QZSS: L1, L2
SBAS: L1
L-Band (TerraStar)

Number of Com Ports
RS-232: 3
CAN Bus: 1
1 PPS: 1
Ground Speed Output: 1
Wi-Fi: Optional
Ethernet: Optional

Performance Accuracy
Single Point L1/L2:     1.2 m RMS
SBAS:                         60 cm RMS
DGPS:                        40 cm RMS
TerraStar-C PRO:       2.5 cm RMS    3 cm 95%
RTK:                           2.5 cm 2 ppm (95%

NovAtel SMART7 Smart Antenna Data Sheet

Triple-Frequency

SM7-FFN-LNN-TMN:  SMART7 with GPS+GLO+GAL+BDS, L1/L2/L5/E1/E5a/E5b/AltBOC/B1/B2/B3, Single Point+DGPS PNT, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

SM7-FFN-LZN-TMN: SMART7 with GPS+GLO+GAL+BDS, L1/L2/L5/E1/E5a/E5b/AltBOC/B1/B2/B3, Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

SM7-FFN-RNN-TBN: SMART7 with GPS+GLO+GAL+BDS, L1/L2/L5/E1/E5a/E5b/AltBOC/B1/B2/B3, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements

SM7-FFN-RNN-TBN-T0: SMART7 with Terrain Compensation, GPS+GLO+GAL+BDS, L1/L2/L5/E1/E5a/E5b/AltBOC/B1/B2/B3, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements

SM7-FFN-RZN-TBN: SMART7 with GPS+GLO+GAL+BDS, L1/L2/L5/E1/E5a/E5b/AltBOC/B1/B2/B3, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements

SM7-TFN-RNN-TBN: SMART7 with GPS+GLO+GAL, L1/L2/L5/E1/E5a/E5b/AltBOC, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements



Dual-Frequency

SM7-DDN-LNN-TBN: SMART7 with GPS+GLO, L1/L2, Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements

SM7-DDN-LNN-TMN: SMART7 with GPS+GLO, L1/L2, Single Point+DGPS PNT, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

SM7-DDN-LNN-TMN-T0: SMART7 with Terrain Compensation, GPS+GLO, L1/L2, Single Point+DGPS PNT, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

SM7-DDN-PNN-TBN: SMART7 with GPS+GLO, L1/L2, NovAtel CORRECT PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements

SM7-DDN-PNN-TMN: SMART7 with GPS+GLO, L1/L2, NovAtel CORRECT PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

SM7-DDN-PNN-TMN-T0: SMART7 with Terrain Compensation, GPS+GLO, L1/L2, NovAtel CORRECT PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

SM7-DDN-PNN-TNN: SMART7 with GPS+GLO, L1/L2, NovAtel CORRECT PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate

SM7-DDN-RNN-TBN: SMART7 with GPS+GLO, L1/L2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements

SM7-DDN-RNN-TBN-T0: SMART7 with Terrain Compensation, GPS+GLO, L1/L2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements

SM7-DDN-RYN-TBN: SMART7 with GPS+GLO, L1/L2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements

SM7-FDN-PNN-TMN: SMART7 with GPS+GLO+GAL+BDS, L1/L2/E1/E5B/B1/B2, NovAtel CORRECT PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Measurements Only, No Base Station Corrections

SM7-FDN-RNN-TBE: SMART7 with GPS+GLO+GAL+BDS, L1/L2/E1/E5B/B1/B2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation
