NovAtel SPAN CPT7 GNSS INS
Item #: SPAN-CPT7

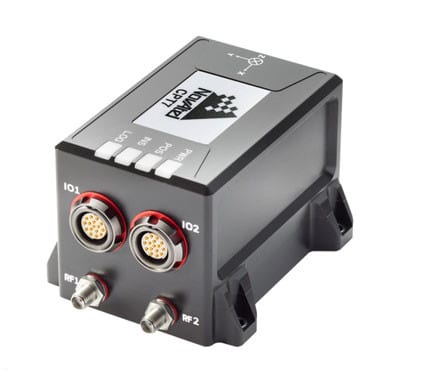

SPAN CPT7

The NovAtel SPAN CPT7 is a compact dual antenna SPAN enclosure delivering 3D position, velocity and attitude.

Request Info / Pricing
SKU: SPAN-CPT7 Categories: , , , , Manufacturer: NovAtel

NovAtel SPAN CPT7 GNSS INS


The SPAN CPT7 is a single enclosure Global Navigation Satellite System (GNSS) Inertial Navigation System (INS) receiver powered by NovAtels OEM7 technology that can deliver up to centimetre-level accuracy. It is lightweight, ultra-compact and offers a low power solution with multiple communication interfaces for easy integration on multiple platforms.

The SPAN CPT7 contains a high performing Micro Electro Mechanical System (MEMS) Inertial Measurement Unit (IMU) to deliver NovAtels Synchronous Position, Attitude and Navigation (SPAN) technology in an integrated solution. NovAtel’s SPAN technology tightly couples GNSS positioning and the stability of IMU gyro and accelerometer measurements to deliver the most satellite observations and the most accurate continuous solution as possible.

FEATURES
  • MEMS gyro and accelerometers
  • Increased satellite availability with 555 channel capability
  • Supports SPAN Land Vehicle technology
  • Optional SPAN Profiles support
  • Advanced interference mitigation features
  • Dual antenna ALIGN heading
  • Multiple communication interfaces
  • Commercially exportable system (non-ITAR)]

ATTRIBUTES

System Type
  • Enclosed with IMU
  • GNSS INS enabled
General Info
  •   Length (mm) 90
  •   Width/Diametre (mm)    60
  •   Height (mm) 60
  •   Weight (g) 495
  •   Typical Power Consumption (W) 7
Signal Tracking
  •   GPS: L1 C/A, L1C, l2C, L2P, L5
  •   GLONASS: L1 C/A, L2 C/A, L2P L3, L5
  •   BeiDou: B1, B2
  •   Galileo:   E1, E5 AltBOC, E5a, E5b
  •   NavIC (IRNSS): L5
  •   SBAS :L1, L5
  •   QZSS: L1 C/A, L1C, L2C, L5
  •   L-Band (primary RF only): Up to 5 channels
Number of Com Ports
  •   RS-422  1
  •   RS-232 (230 400 bps max)  1
  •   USB Device 1
  •   CAN Bus 1
  •   Event Input 2
  •   Event Output 2
Performance
  •   Accuracy (RMS)
  •   Single Point L1 1.5 m
  •   Single Point L1/L2 1.2 m
  •   NovAtel CORRECT
  •   SBAS 60 cm
  •   DGPS 40 cm
  •   PPP
  •   TerraStar-L 40 cm
  •   TerraStar-C 4 cm
  •   RTK        1 cm 1 ppm
  •   IMU Raw Data Rate 100 Hz
Gyroscope Performance
  •   Technology MEMS
  •   Input Rate (max) 200/S
Accelerometer Performance
  •   Technology MEMS
  •   Range 20 g

NovAtel SPAN CPT7 Compact Dual Antenna GNSS INS Receiver Enclosure Data Sheet

NovAtel SPAN Product Line Brochure

Triple-Frequency

SPANCPT7-MFD-RYN-TBE-S1: SPAN CPT7 dual antenna enclosure containing OEM7720 with Honeywell HG4930 MEMS IMU. GPS+GAL+BDS, L1/L2/E1/E5b/B1/B2, Dual Antenna Activation, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation, SPAN Enabled, Entry Level IMU Includes GLIDE & RAIM and tracks SBAS/QZSS/LBand.

Dual-Frequency

SPANCPT7-CDD-RYN-TBE-S1:  SPAN CPT7 dual antenna enclosure containing OEM7720 with Honeywell HG4930 MEMS IMU. GPS+GLO+BDS, L1/L2/B1/B2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation, SPAN enabled , Entry level IMU

SPANCPT7-CDD-RYN-TBN-P1:  SPAN CPT7 dual antenna enclosure containing OEM7720 with Honeywell HG4930 MEMS IMU. GPS+GLO+BDS, L1/L2/B1/B2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, Profiles/Heave enabled, Entry level IMU

SPANCPT7-CDD-RYN-TBN-S1:  SPAN CPT7 dual antenna enclosure containing OEM7720 with Honeywell HG4930 MEMS IMU. GPS+GLO+BDS, L1/L2/B1/B2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled, Entry level IMU

SPANCPT7-CDD-RZN-TBN-P1:  SPAN CPT7 dual antenna enclosure containing OEM7720 with Honeywell HG4930 MEMS IMU, GPS+GLO+BDS, L1/L2/B1/B2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, Profiles/Heave enabled, Entry level IMU

SPANCPT7-CDD-RZN-TBN-S1:  SPAN CPT7 dual antenna enclosure containing OEM7720 with Honeywell HG4930 MEMS IMU, GPS+GLO+BDS, L1/L2/B1/B2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled, Entry level IMU

SPANCPT7-DDD-RYN-TBE-P1:  SPAN CPT7 dual antenna enclosure containing OEM7720 with Honeywell HG4930 MEMS IMU. GPS+GLO, L1/L2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation, SPAN Enabled, Profiles/Heave enabled, Entry level IMU

SPANCPT7-DDD-RYN-TBE-S1: SPAN CPT7 dual antenna enclosure containing OEM7720 with Honeywell HG4930 MEMS IMU. GPS+GLO, L1/L2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation, SPAN enabled , Entry level IMU

SPANCPT7-DDD-RYN-TBN-R1:  SPAN CPT7 dual antenna enclosure containing OEM7720 with Honeywell HG4930 MEMS IMU, GPS+GLO, L1/L2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, Relative INS, Entry level IMU

SPANCPT7-DDD-RYN-TBN-S1: SPAN CPT7 dual antenna enclosure containing OEM7720 with Honeywell HG4930 MEMS IMU. GPS+GLO, L1/L2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled, Entry level IMU

SPANCPT7-DDD-RZN-TBE-P1:  SPAN CPT7 dual antenna enclosure containing OEM7720 with Honeywell HG4930 MEMS IMU. GPS+GLO, L1/L2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation, SPAN Enabled, Profiles/Heave enabled, Entry level IMU

SPANCPT7-DDD-RZN-TBN-P1 SPAN CPT7 dual antenna enclosure containing OEM7720 with Honeywell HG4930 MEMS IMU, GPS+GLO, L1/L2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, Profiles/Heave enabled, Entry level IMU

SPANCPT7-DDD-RZN-TBN-S1:  SPAN CPT7 dual antenna enclosure containing OEM7720 with Honeywell HG4930 MEMS IMU. GPS+GLO, L1/L2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled , Entry level IMU

SPANCPT7-DDN-RNN-TBN-S1:  SPAN CPT7 dual antenna enclosure containing OEM7720 with Honeywell HG4930 MEMS IMU. GPS+GLO, L1/L2, Single Antenna Activation, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled, Entry level IMU

SPANCPT7-FDD-RYN-TBE-P1:  SPAN CPT7 dual antenna enclosure containing OEM7720 with Honeywell HG4930 MEMS IMU. GPS+GLO+GAL+BDS, L1/L2/E1/E5B/B1/B2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation, SPAN Enabled, Profiles/Heave enabled, Entry level IMU

SPANCPT7-FDD-RYN-TBE-S1:  SPAN CPT7 dual antenna enclosure containing OEM7720 with Honeywell HG4930 MEMS IMU. GPS+GLO+GAL+BDS, L1/L2/E1/E5B/B1/B2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation, SPAN enabled , Entry level IMU

SPANCPT7-FDD-RYN-TBN-S1:  SPAN CPT7 dual antenna enclosure containing OEM7720 with Honeywell HG4930 MEMS IMU, GPS+GLO+GAL+BDS, L1/L2/E1/E5B/B1/B2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled, Entry level IMU

SPANCPT7-FDD-RYN-TBN-S1-A:  SPAN CPT7 dual antenna enclosure containing OEM7720 with Honeywell HG4930 MEMS IMU, GPS+GLO+GAL+BDS, L1/L2/E1/E5B/B1/B2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled, Entry level IMU, API

SPANCPT7-FDD-RZN-TBE-S1:  SPAN CPT7 dual antenna enclosure containing OEM7720 with Honeywell HG4930 MEMS IMU, GPS+GLO+GAL+BDS, L1/L2/E1/E5B/B1/B2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation, SPAN enabled , Entry level IMU

SPANCPT7-FDD-RZN-TBN-P1:  SPAN CPT7 dual antenna enclosure containing OEM7720 with Honeywell HG4930 MEMS IMU, GPS+GLO+GAL+BDS, L1/L2/E1/E5B/B1/B2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, Profiles/Heave enabled, Entry level IMU

SPANCPT7-FDD-RZN-TBN-S1:  SPAN CPT7 dual antenna enclosure containing OEM7720 with Honeywell HG4930 MEMS IMU. GPS+GLO+GAL+BDS, L1/L2/E1/E5B/B1/B2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled, Entry level IMU

SPANCPT7-GDD-RYN-TBE-S1:  SPAN CPT7 dual antenna enclosure containing OEM7720 with Honeywell HG4930 MEMS IMU, GPS, L1/L2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation, SPAN enabled, Entry level IMU

SPANCPT7-GDD-RYN-TBN-S1:  SPAN CPT7 dual antenna enclosure containing OEM7720 with Honeywell HG4930 MEMS IMU, GPS, L1/L2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled , Entry level IMU

SPANCPT7-GDD-RZN-TBN-S1: SPAN CPT7 dual antenna enclosure containing OEM7720 with Honeywell HG4930 MEMS IMU. GPS, L1/L2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled, Entry level IMU

SPANCPT7NC-FDD-RZN-TBN-P1:  SPAN CPT7 dual antenna enclosure containing OEM7720 with Honeywell HG4930 MEMS IMU, GPS+GLO+GAL+BDS, L1/L2/E1/E5B/B1/B2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, Profiles/Heave enabled, Entry level IMU, No Cables

SPANCPT7NC-GDD-RYN-TBN-S1:  SPAN CPT7 dual antenna enclosure containing OEM7720 with Honeywell HG4930 MEMS IMU, GPS, L1/L2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled , Entry level IMU. No cables variant.

SPANCPT7NC-GDD-RZN-TBN-S1:  SPAN CPT7 dual antenna enclosure containing OEM7720 with Honeywell HG4930 MEMS IMU. GPS, L1/L2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled, Entry level IMU. Without cables.

SPANCPT7-PDD-RZN-TBN-S1:  SPAN CPT7 dual antenna enclosure containing OEM7720 with Honeywell HG4930 MEMS IMU. GPS+BDS, L1/L2/B1/B2, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled , Entry level IMU

SPANCPT7-TDD-RYN-TBN-P1:  SPAN CPT7 dual antenna enclosure containing OEM7720 with Honeywell HG4930 MEMS IMU, GPS+GLO+GAL, L1/L2/E1/E5b, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, Profiles/Heave enabled, Entry level IMU

SPANCPT7-TDD-RYN-TBN-S1:  SPAN CPT7 dual antenna enclosure containing OEM7720 with Honeywell HG4930 MEMS IMU, GPS+GLO+GAL, L1/L2/E1/E5b, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled, Entry level IMU

SPANCPT7-TDD-RZN-TBE-P1:  SPAN CPT7 dual antenna enclosure containing OEM7720 with Honeywell HG4930 MEMS IMU, GPS+GLO+GAL, L1/L2/E1/E5b, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements, Interference Mitigation, SPAN Enabled, Profiles/Heave enabled, Entry level IMU

SPANCPT7-TDD-RZN-TBN-P1:  SPAN CPT7 dual antenna enclosure containing OEM7720 with Honeywell HG4930 MEMS IMU, GPS+GLO+GAL, L1/L2/E1/E5b, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN Enabled, Profiles/Heave enabled, Entry level IMU

SPANCPT7-TDD-RZN-TBN-S1:  SPAN CPT7 dual antenna enclosure containing OEM7720 with Honeywell HG4930 MEMS IMU. GPS+GLO+GAL, L1/L2/E1/E5b, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled, Entry level IMU

SPANCPT7-WDD-RYN-TBN-S1:  SPAN CPT7 dual antenna enclosure containing OEM7720 with Honeywell HG4930 MEMS IMU, GPS+GAL, L1/L2/E1/E5b, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Relative Positioning, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled, Entry level IMU

SPANCPT7-WDD-RZN-TBN-S1:  SPAN CPT7 dual antenna enclosure containing OEM7720 with Honeywell HG4930 MEMS IMU. GPS+GAL, L1/L2/E1/E5b, NovAtel CORRECT RT2+PPP+Single Point+DGPS PNT, ALIGN Heading, 20 Hz Data Output Rate, Base Station Corrections + Measurements, SPAN enabled, Entry level IMU
