NovAtelOEM638 Triple-Frequency Receiver
Item #: Span-638

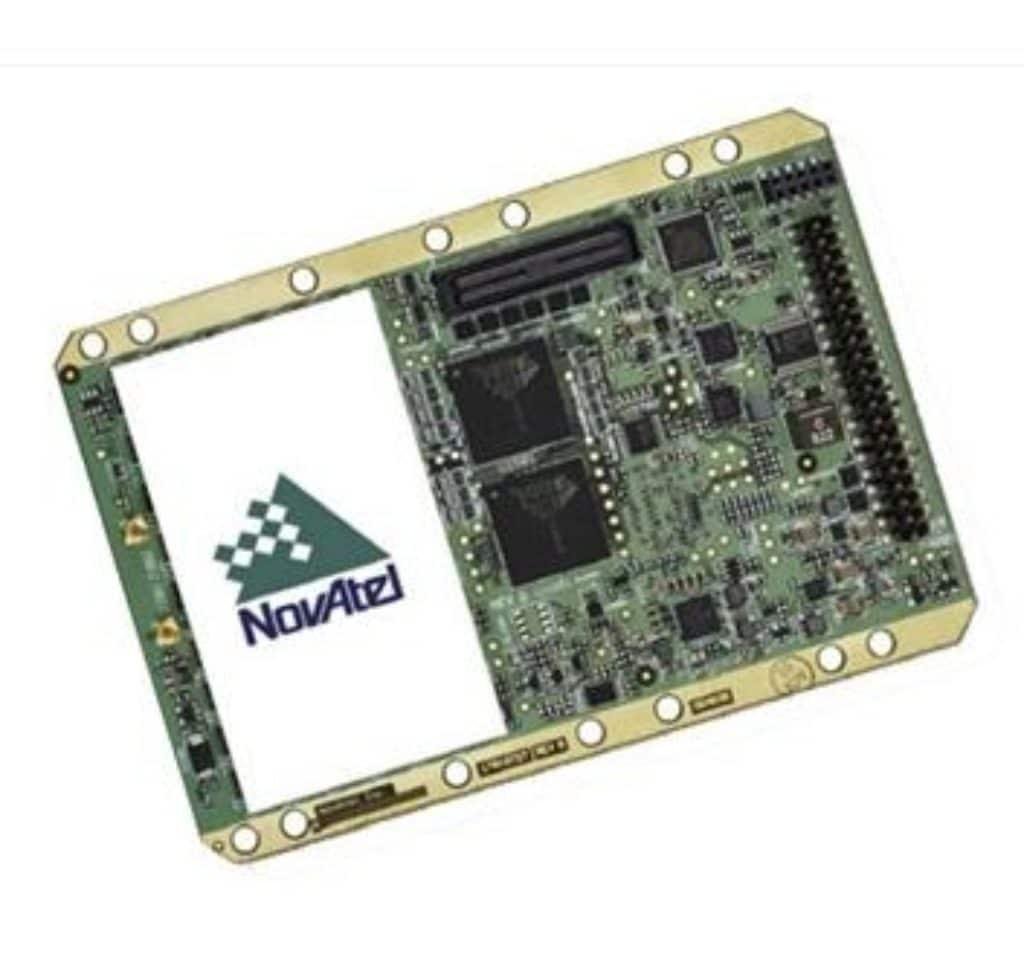

SPAN OEM638 GNSS Receiver

This product has been discontinued by the manufacturer. Please contact us for further information.

The NovAtel SPAN on OEM638 is a high precision GNSS triple frequency receiver board.

Discontinued - contact us
SKU: Span-638 Categories: , , , , Manufacturer: NovAtel

NovAtel SPAN OEM638 GNSS Triple-Frequecy GNSS Receiver

This product has been discontinued by the manufacturer. Please contact us for information.

The SPAN on OEM638 is a high precision GNSS receiver board within NovAtel’s OEM6 series of products, with the same form factor as its legacy SPAN on the OEMV-3 receiver.

From standalone meter-level to NovAtel CORRECT with RTK centimeter-level positioning, the fully featured OEM638 provides the flexibility to meet your unique positioning needs. With 240 channels and comprehensive tracking and positioning with all current and planned GNSS signals, the OEM638 is field upgradeable, eliminating the need for future hardware changes. The unprecedented user configurability of the OEM638 makes it an ideal solution for mobile mapping, hydrographic survey and a wide range of precision positioning applications.

Features

  • 240 channels to support all constellations
  • Advanced interference rejection for robust operation in harsh interference environments
  • 4 GB onboard memory for data logging and easy storage and retrieval
  • Up to 200Hz inertial data output to meet your high dynamic needs

Benefits

  • Current and upcoming GNSS signal support ensures future proofing of your GNSS products
  • Powerful and improved performance to work with your demanding applications
  • Application Programming Interface (API) reduces hardware requirements and complexity improving your ROI and time to market
  • SPAN ready for rapid integration in GNSS INS
  • Multiple communication interfaces provide flexible and fast integration

NovAtel SPAN OEM638 GNSS Receiver with Flexible Postioning Options Data Sheet

Triple-Frequency

OEM638-D5J-B0R-TTN: GPS, GLONASS, L1/L2/L5, SBAS/L-Band/QZSS, DGPS, NovAtel CORRECT RT-2 Base, GLIDE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM638-D5J-BPR-TTN: GPS, GLONASS, L1/L2/L5, SBAS/L-Band/QZSS, DGPS, NovAtel CORRECT RT-2 Base, NovAtel CORRECT PPP, GLIDE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM638-D5J-RPR-TTN: GPS, GLONASS, L1/L2/L5, SBAS/L-Band/QZSS, DGPS, NovAtel CORRECT RT-2 Base/Rover, NovAtel CORRECT PPP, GLIDE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM638-FAJ-B0R-TTN: GPS, GLONASS, GALILEO, BeiDou,, L1/L2/L5/E1/E5a/E5b/AltBOC/B1/B2, SBAS/L-Band/QZSS, DGPS, NovAtel CORRECT RT-2 Base, GLIDE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM638-FAJ-BPR-TTN: GPS, GLONASS, GALILEO, BeiDou,, L1/L2/L5/E1/E5a/E5b/AltBOC/B1/B2, SBAS/L-Band/QZSS, DGPS, NovAtel CORRECT RT-2 Base, NovAtel CORRECT PPP, GLIDE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM638-FAJ-RPR-TTN: GPS, GLONASS, GALILEO, BeiDou,, L1/L2/L5/E1/E5a/E5b/AltBOC/B1/B2, SBAS/L-Band/QZSS, DGPS, NovAtel CORRECT RT-2 Base/Rover, NovAtel CORRECT PPP, GLIDE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM638-G5J-B0R-TTN: GPS, L1/L2/L5, SBAS/L-Band/QZSS, DGPS, NovAtel CORRECT RT-2 Base, GLIDE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM638-G5J-BPR-TTN: GPS, L1/L2/L5, SBAS/L-Band/QZSS, DGPS, NovAtel CORRECT RT-2 Base, NovAtel CORRECT PPP, GLIDE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM638-G5J-RPR-TTN: GPS, L1/L2/L5, SBAS/L-Band/QZSS, DGPS, NovAtel CORRECT RT-2 Base/Rover, NovAtel CORRECT PPP, GLIDE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM638-T5J-B0R-TTN: GPS, GLONASS, GALILEO, L1/L2/L5/E1/E5a, SBAS/L-Band/QZSS, DGPS, NovAtel CORRECT RT-2 Base, GLIDE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM638-T5J-BPR-TTN: GPS, GLONASS, GALILEO, L1/L2/L5/E1/E5a, SBAS/L-Band/QZSS, DGPS, NovAtel CORRECT RT-2 Base, NovAtel CORRECT PPP, GLIDE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM638-T5J-RPR-TTN: GPS, GLONASS, GALILEO, L1/L2/L5/E1/E5a, SBAS/L-Band/QZSS, DGPS, NovAtel CORRECT RT-2 Base/Rover, NovAtel CORRECT PPP, GLIDE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM638-TAJ-B0R-TTN: GPS, GLONASS, GALILEO, L1/L2/L5/E1/E5a/E5b/AltBOC, SBAS/L-Band/QZSS, DGPS, NovAtel CORRECT RT-2 Base, GLIDE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM638-TAJ-BPR-TTN: GPS, GLONASS, GALILEO, L1/L2/L5/E1/E5a/E5b/AltBOC, SBAS/L-Band/QZSS, DGPS, NovAtel CORRECT RT-2 Base, NovAtel CORRECT PPP, GLIDE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM638-TAJ-RPR-TTN: GPS, GLONASS, GALILEO, L1/L2/L5/E1/E5a/E5b/AltBOC, SBAS/L-Band/QZSS, DGPS, NovAtel CORRECT RT-2 Base/Rover, NovAtel CORRECT PPP, GLIDE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM638-W5J-B0R-TTN: GPS, GALILEO, L1/L2/L5/E1/E5a, SBAS/L-Band/QZSS, DGPS, NovAtel CORRECT RT-2 Base, GLIDE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM638-W5J-BPR-TTN: GPS, GALILEO, L1/L2/L5/E1/E5a, SBAS/L-Band/QZSS, DGPS, NovAtel CORRECT RT-2 Base, NovAtel CORRECT PPP, GLIDE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM638-W5J-RPR-TTN: GPS, GALILEO, L1/L2/L5/E1/E5a, SBAS/L-Band/QZSS, DGPS, NovAtel CORRECT RT-2 Base/Rover, NovAtel CORRECT PPP, GLIDE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM638-WAJ-B0R-TTN: GPS, GALILEO, L1/L2/L5/E1/E5a/E5b/AltBOC, SBAS/L-Band/QZSS, DGPS, NovAtel CORRECT RT-2 Base, GLIDE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM638-WAJ-BPR-TTN: GPS, GALILEO, L1/L2/L5/E1/E5a/E5b/AltBOC, SBAS/L-Band/QZSS, DGPS, NovAtel CORRECT RT-2 Base, NovAtel CORRECT PPP, GLIDE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM638-WAJ-RPR-TTN: GPS, GALILEO, L1/L2/L5/E1/E5a/E5b/AltBOC, SBAS/L-Band/QZSS, DGPS, NovAtel CORRECT RT-2 Base/Rover, NovAtel CORRECT PPP, GLIDE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP



 Dual-Frequency

OEM638-CDJ-B0R-FFN: GPS, BeiDou,, GLONASS, L1/L2/B1/B2, SBAS/L-Band/QZSS, DGPS, NovAtel CORRECT RT-2 Base, GLIDE/RAIM, 50 Hz Measurements, 50 Hz Positions, NTRIP

OEM638-CDJ-B0R-TTN: GPS, BeiDou,, GLONASS, L1/L2/B1/B2, SBAS/L-Band/QZSS, DGPS, NovAtel CORRECT RT-2 Base, GLIDE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM638-CDJ-BPR-TTN: GPS, BeiDou,, GLONASS, L1/L2/B1/B2, SBAS/L-Band/QZSS, DGPS, NovAtel CORRECT RT-2 Base, NovAtel CORRECT PPP, GLIDE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM638-CDJ-RPR-TTN: GPS, BeiDou,, GLONASS, L1/L2/B1/B2, SBAS/L-Band/QZSS, DGPS, NovAtel CORRECT RT-2 Base/Rover, NovAtel CORRECT PPP, GLIDE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM638-CDQ-Y0R-TTN: GPS, BeiDou,, GLONASS, L1/L2/B1/B2, SBAS/QZSS, DGPS, ALIGN Relative Positioning, GLIDE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM638-D2J-B0R-TTN: GPS, GLONASS, L1/L2, SBAS/L-Band/QZSS, DGPS, NovAtel CORRECT RT-2 Base, GLIDE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM638-D2J-BPR-TTN: GPS, GLONASS, L1/L2, SBAS/L-Band/QZSS, DGPS, NovAtel CORRECT RT-2 Base, NovAtel CORRECT PPP, GLIDE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM638-D2J-RPR-TTN: GPS, GLONASS, L1/L2, SBAS/L-Band/QZSS, DGPS, NovAtel CORRECT RT-2 Base/Rover, NovAtel CORRECT PPP, GLIDE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM638-F2J-B0R-TTN: GPS, GLONASS, GALILEO, BeiDou,, L1/L2/E1/B1, SBAS/L-Band/QZSS, DGPS, NovAtel CORRECT RT-2 Base, GLIDE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM638-F2J-BPR-TTN: GPS, GLONASS, GALILEO, BeiDou,, L1/L2/E1/B1, SBAS/L-Band/QZSS, DGPS, NovAtel CORRECT RT-2 Base, NovAtel CORRECT PPP, GLIDE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM638-F2J-RPR-TTN: GPS, GLONASS, GALILEO, BeiDou,, L1/L2/E1/B1, SBAS/L-Band/QZSS, DGPS, NovAtel CORRECT RT-2 Base/Rover, NovAtel CORRECT PPP, GLIDE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM638-FDJ-00R-TTN: GPS, GLONASS, GALILEO, BeiDou,, L1/L2/E1/E5b/B1/B2, SBAS/L-Band/QZSS, DGPS, GLIDE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM638-FDJ-B0R-TTN: GPS, GLONASS, GALILEO, BeiDou,, L1/L2/E1/E5b/B1/B2, SBAS/L-Band/QZSS, DGPS, NovAtel CORRECT RT-2 Base, GLIDE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM638-FDJ-BPR-TTN: GPS, GLONASS, GALILEO, BeiDou,, L1/L2/E1/E5b/B1/B2, SBAS/L-Band/QZSS, DGPS, NovAtel CORRECT RT-2 Base, NovAtel CORRECT PPP, GLIDE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM638-FDJ-RPR-TTN: GPS, GLONASS, GALILEO, BeiDou,, L1/L2/E1/E5b/B1/B2, SBAS/L-Band/QZSS, DGPS, NovAtel CORRECT RT-2 Base/Rover, NovAtel CORRECT PPP, GLIDE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM638-G2J-B0R-TTN: GPS, L1/L2, SBAS/L-Band/QZSS, DGPS, NovAtel CORRECT RT-2 Base, GLIDE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM638-G2J-BPR-TTN: GPS, L1/L2, SBAS/L-Band/QZSS, DGPS, NovAtel CORRECT RT-2 Base, NovAtel CORRECT PPP, GLIDE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM638-G2J-RPR-TTN: GPS, L1/L2, SBAS/L-Band/QZSS, DGPS, NovAtel CORRECT RT-2 Base/Rover, NovAtel CORRECT PPP, GLIDE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM638-PDQ-Y0R-TTN: GPS, BeiDou,, L1/L2/B1/B2, SBAS/QZSS, DGPS, ALIGN Relative Positioning, GLIDE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM638-TDJ-B0R-TTN: GPS, GLONASS, GALILEO, L1/L2/E1/E5B, SBAS/L-Band/QZSS, DGPS, NovAtel CORRECT RT-2 Base, GLIDE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM638-TDJ-BPR-TTN: GPS, GLONASS, GALILEO, L1/L2/E1/E5B, SBAS/L-Band/QZSS, DGPS, NovAtel CORRECT RT-2 Base, NovAtel CORRECT PPP, GLIDE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM638-TDJ-RPR-TTN: GPS, GLONASS, GALILEO, L1/L2/E1/E5B, SBAS/L-Band/QZSS, DGPS, NovAtel CORRECT RT-2 Base/Rover, NovAtel CORRECT PPP, GLIDE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP



Single-Frequency

OEM638-D1Q-B0R-TTN: GPS, GLONASS, L1, SBAS/QZSS, DGPS, NovAtel CORRECT RT-2 Base, GLIDE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM638-G1Q-B0R-TTN: GPS, L1, SBAS/QZSS, DGPS, NovAtel CORRECT RT-2 Base, GLIDE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

OEM638-G1S-000-000: Hardware only, requires a firmware upgrade to produce output 995 995  OEM638-T1Q-B0R-TTN: GPS, GLONASS, GALILEO, L1/E1, SBAS/QZSS, DGPS, NovAtel CORRECT RT-2 Base, GLIDE/RAIM, 20 Hz Measurements, 20 Hz Positions, NTRIP

Effective August 14, 2018, NovAtel Announces End Of Life for OEM638 and OEM638V receiver boards

These products will be available for order until:

November 15, 2018, or until inventory is depleted

Shipments may be scheduled for no later than:

May 15, 2019

NovAtel will continue to support and repair these products until:

March 31, 2021

For a complete list of affected part numbers and the associated replacement part numbers, please refer to the table below:

Discontinued Part Number Replacement Part Number
OEM638-xxx-xxx-xxx No direct replacement, see OEM7® series
OEM638V-xxx-xxx-xxx No direct replacement, see OEM7 series
