TW3012 GPS L1, Brickwall Pre-Filtered Antenna

The Tallysman TW3012 from Calian is a professional grade, highly filtered permanent mount, GPS L1 antenna, specially designed for precision positioning and timing applications in environments characterized by high L-Band RF fields.



The TW3012 features a precisely tuned ceramic patch element, a tight SAW pre-filter, a first LNA gain stage, a mid-section SAW filter and a final gain stage. It covers the GPS L1 and SBAS (WAAS/EGNOS/MSAS) frequency band (1572.5 to 1578 MHz), and it offers unparalleled out-of-band signal rejection and excellent axial ratio for improved signal reception and multipath rejection.

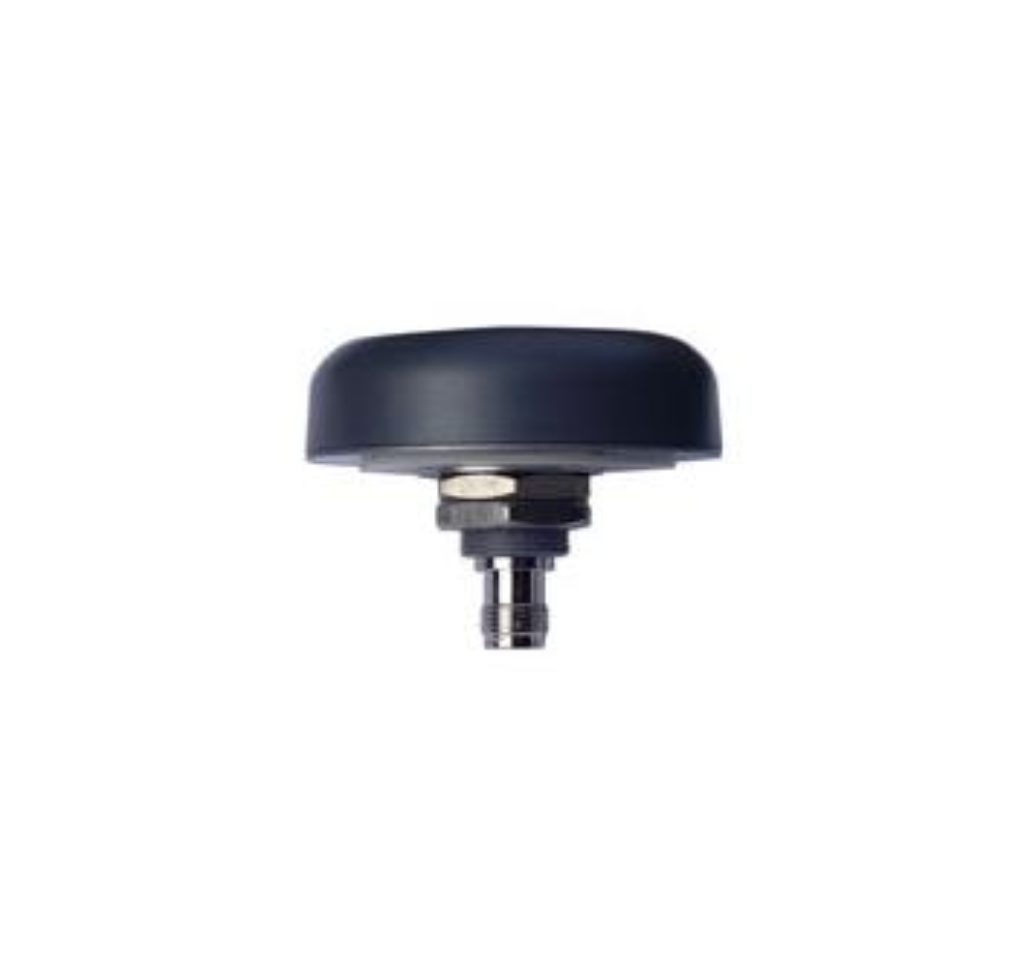

The TW3012 is housed in a permanent mount industrial-grade weather-proof enclosure, and comes with a TNC Jack (female) connector.



Narrow pass-band SAW pre-filter

3 dB Noise Figure (including pre-filter)

Axial ratio: <4dB at Zenith

High LNA gain: 26 dB typ.

Low current: 10 mA typ.

ESD circuit protection: 15 KV

Wide voltage input range: 3.0 to 10 VDC
