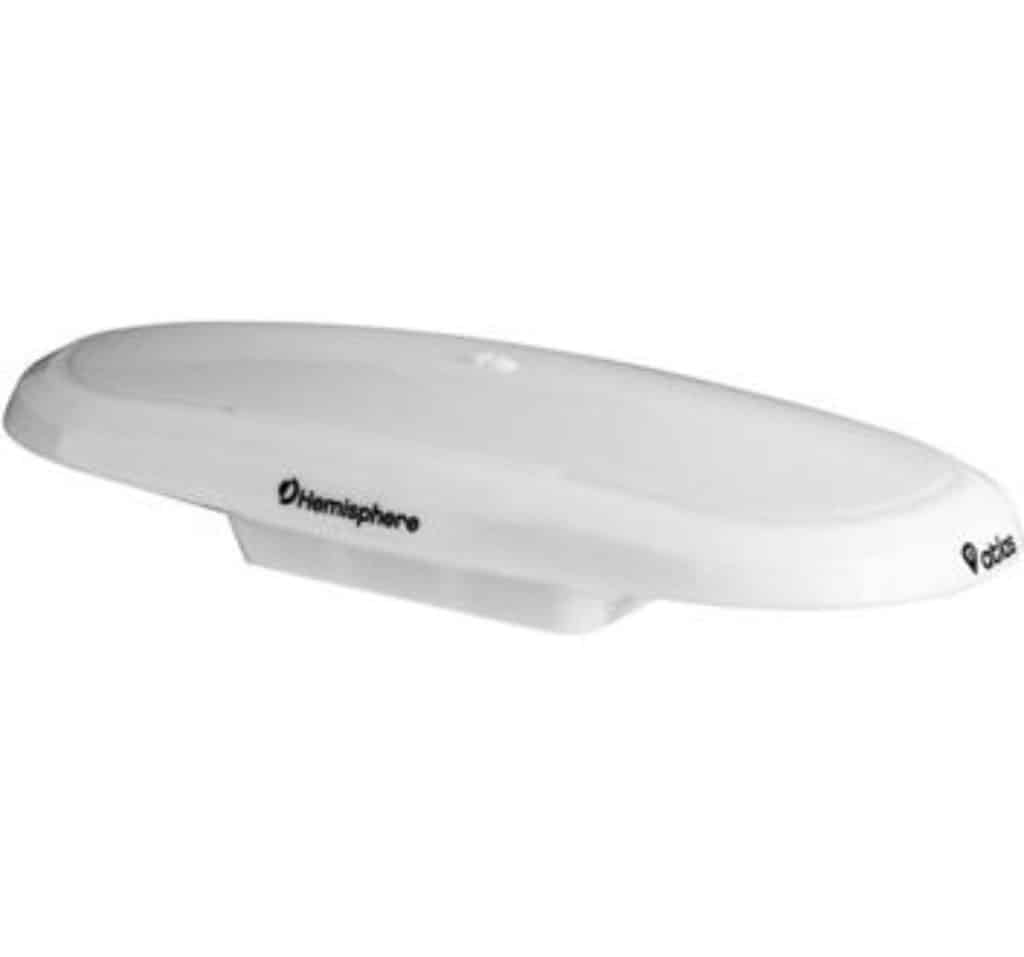

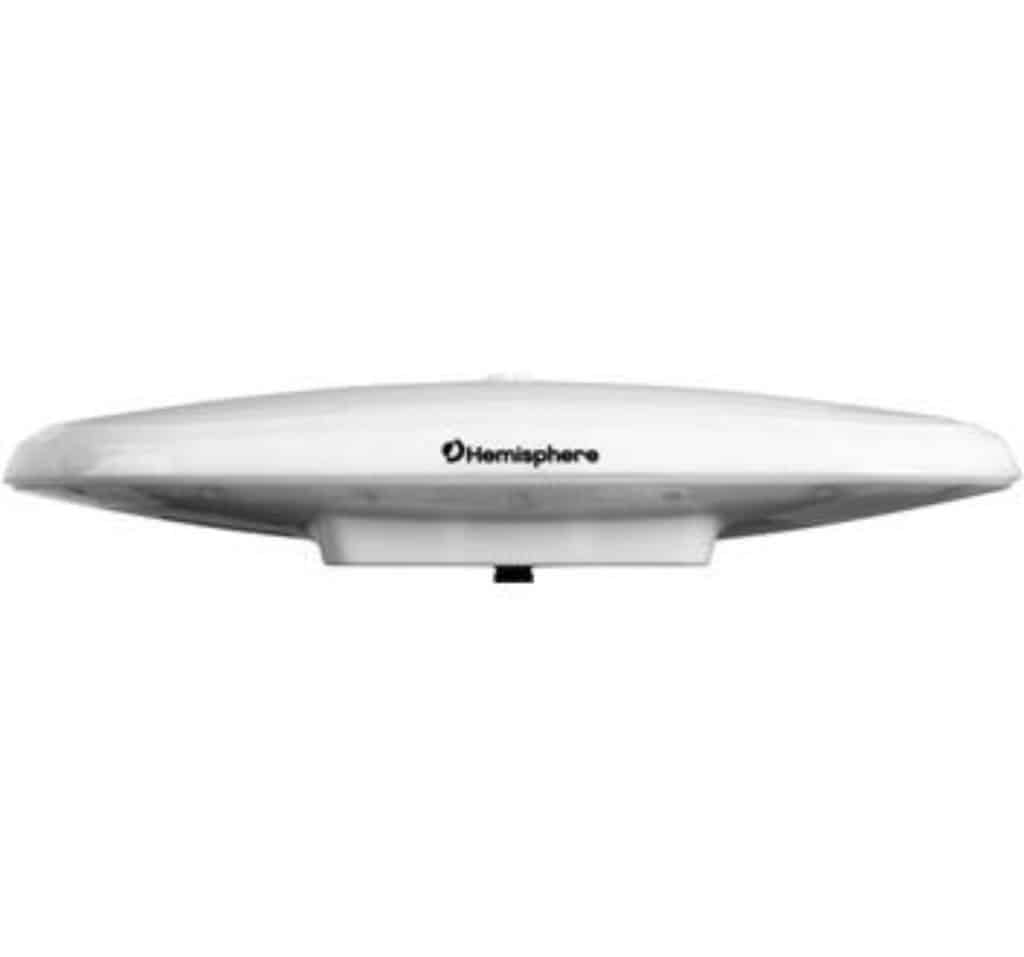

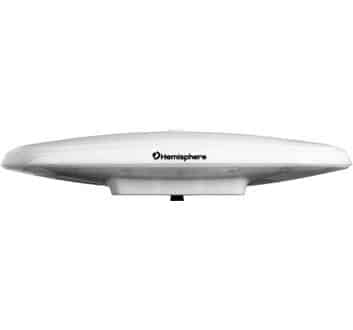

Hemisphere Vector™ V200 GNSS Smart Antenna
Powered by Hemisphere’s Crescent Vector™ technology, the V200 is a multi-GNSS compass system that utilizes GPS, GLONASS, BeiDou, Galileo, and QZSS (with future firmware upgrade and activation) for simultaneous satellite tracking to offer heading, position, heave, pitch, and roll output. (See Models Tab for additional configurations.)
With support for NMEA 0183 and NMEA 2000, integrating Atlas L-band corrections, and continuing to offer ease of installation, the V200 packages and offers exceptional value and performance. The V200 excels in providing accurate position and heading information to autopilots, chart plotters, and other general marine navigation applications.
The all-in-one V200 GNSS compass combines Hemisphere’s Crescent Vector H220 OEM board, two superior multipath and noise-rejecting antennas (spaced 20 cm apart), a multi-axis gyro, and tilt sensors in a single easy-to-install and use enclosure. The V200 delivers 1.5 degree (or optional 0.75 degree) heading accuracy and Atlas L-band accuracies of 30 cm to 60 cm and offers
instantaneous sub-meter accuracy and DGPS-level accuracy.
The Vector™ V200 offers a combination of simple installation, small form factor, and amazing performance. The V200 Compass measuring only 35 cm in length mounts easily to a flat surface or pole, and comes in either 5- or 12-pin options that require only a single power/data cable connection for fast and reliable installations, even in the presence of strong radio transmissions.
The stability and maintenance-free design of the Vector V200 provides simple integration into autopilots, chart plotters, and AIS systems.
Features
- Single-frequency, multi-GNSS
- GPS, GLONASS, BeiDou, Galileo and QZSS
- Atlas, L-Band, and SBAS capable
- 424 channels
- 10 Hz update rate (20 Hz optional)
- 0.75 degree heading accuracy
