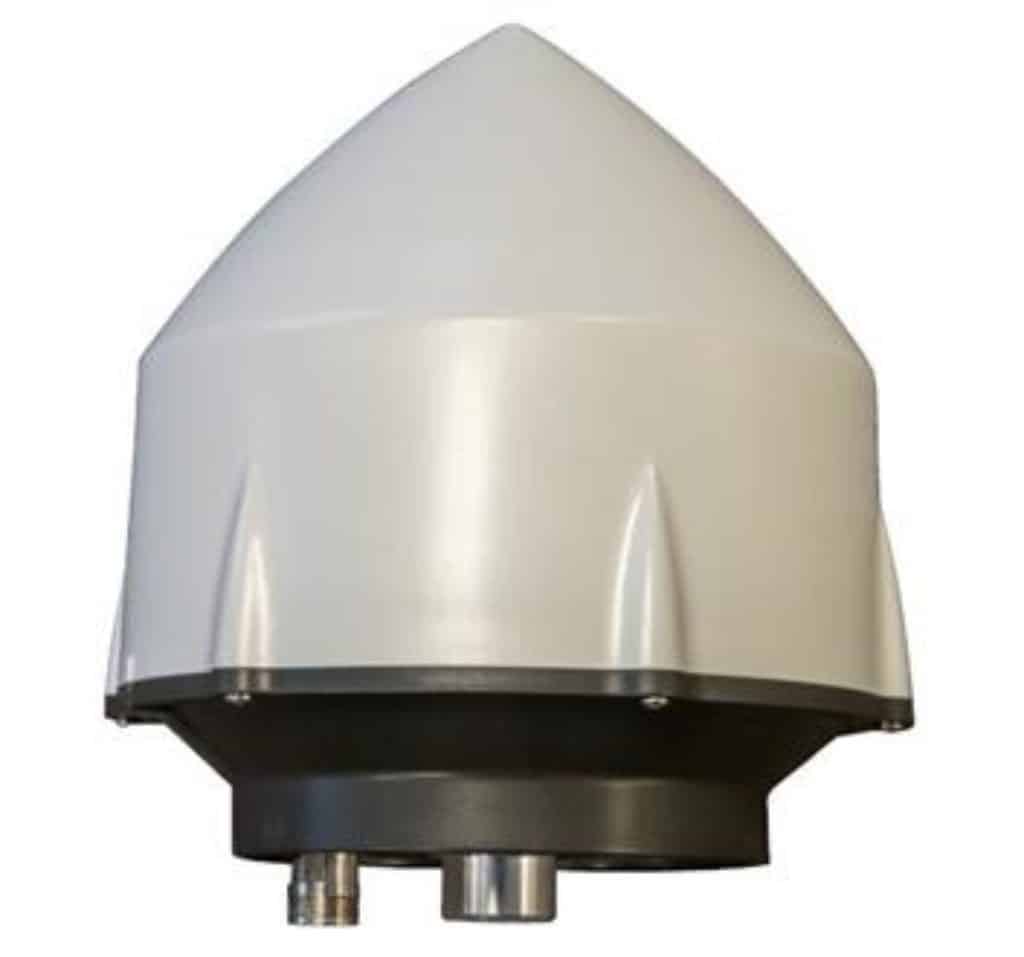

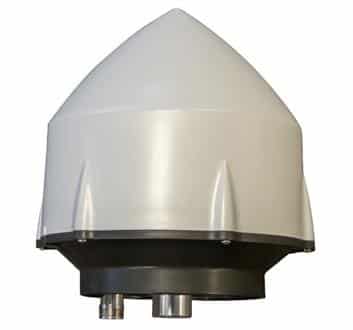

Tallysman VeraPhase 6200
The patented VeraPhase® technology produces the results of choke ring technology but is lighter, smaller, more economical and requires less power.
The antenna provides the lowest axial ratios (horizon to horizon, over all azimuths) across all received frequencies (<0.5dB at zenith, <2 dB at horizon). It provides exceptional front to back ratios, high efficiency (>70%), a tight PCV ( ±1mm), and near constant PCO for all azimuth and elevation angles, over all in-band frequencies. The VP6200 is ideal for GNSS / RTK reference networks, monitoring stations, and other high precision applications.
The VP6200 antenna is capable of receiving GPS L1/L2, GLONASS G1/G2, BeiDou B1/B2, Galileo E1, and L-band (1195 1254MHz plus 1525-1610MHz). It has consistent performance (gain, axial ratio, PCV, and PCO) across the full bandwidth of the antenna. It provides the lowest axial ratios (horizon to horizon, over all azimuths) across all GNSS frequencies (<0.5dB at zenith, <2 dB typ. at horizon). It has an exceptional front to back ratios, high efficiency (>70%), a tight PCV, and near constant PCO for all azimuth and elevation angles, over all in-band frequencies.
Features
- Low Axial Ratio from horizon to horizon
- Very Tight Phase Center Variation (<1.5mm)
- Invariant performance from: 2.7 to 24 VDC
- Space in housing for integrated L1/L2 receivers RTK or other OEM system.
Benefits
- Broadest tracking elevation
- Extreme precision
- Excellent multi-path rejection
- Great signal to noise ratio
- IP67, REACH, and RoHS compliant
