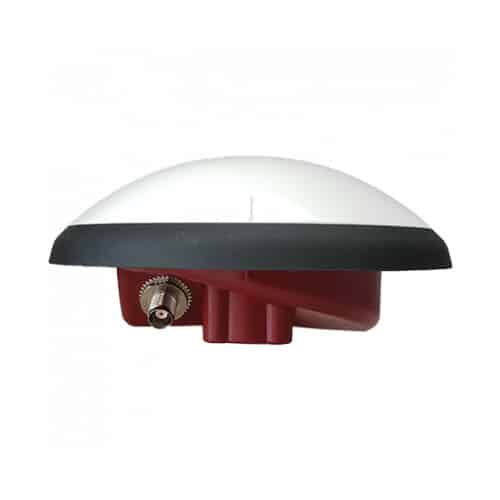

Tallymans VSP6337L-MAR VeroStar™ Marine Triple-Band GNSS Precision Antenna + L-Band
The VSP6337L-MAR antenna employs Tallysman’s VeroStar™ technology, to provide high gain over the full GNSS spectrum: GPS/QZSS-L1/L2/L5, GLONASS-G1/G2/G3, Galileo-E1/E5a/E5b, BeiDou-B1/B2/B2a, and NavIC-L5, including the satellite-based augmentation system (SBAS) available in the region of operation [WAAS (North America), EGNOS (Europe), MSAS (Japan), or GAGAN (India)]. The VSP6337L-MAR provides mitigation of Iridium & Inmarsat interference for marine applications.
Features
- Tight phase centre variation (± 2.0 mm; no azimuth)
- Invariant performance from 3.0 to 16 VDC
- Low axial ratios from zenith to horizon
- Low roll-off from zenith to horizon
- High G/T at low elevation angles
- Low current (50 mA)
- Low noise figure (1.8 dB)
- Light, compact, and robust design
- IP69K, REACH and RoHS compliant
- IEC 60945 and IEC 61108 compliant
Benefits
- Consistent performance across all frequency bands
- Extreme accuracy and precision
- Excellent GNSS tracking from low elevations
- Excellent multipath rejection
- Excellent mitigation of Iridium & Inmarsat interference
